Product Description

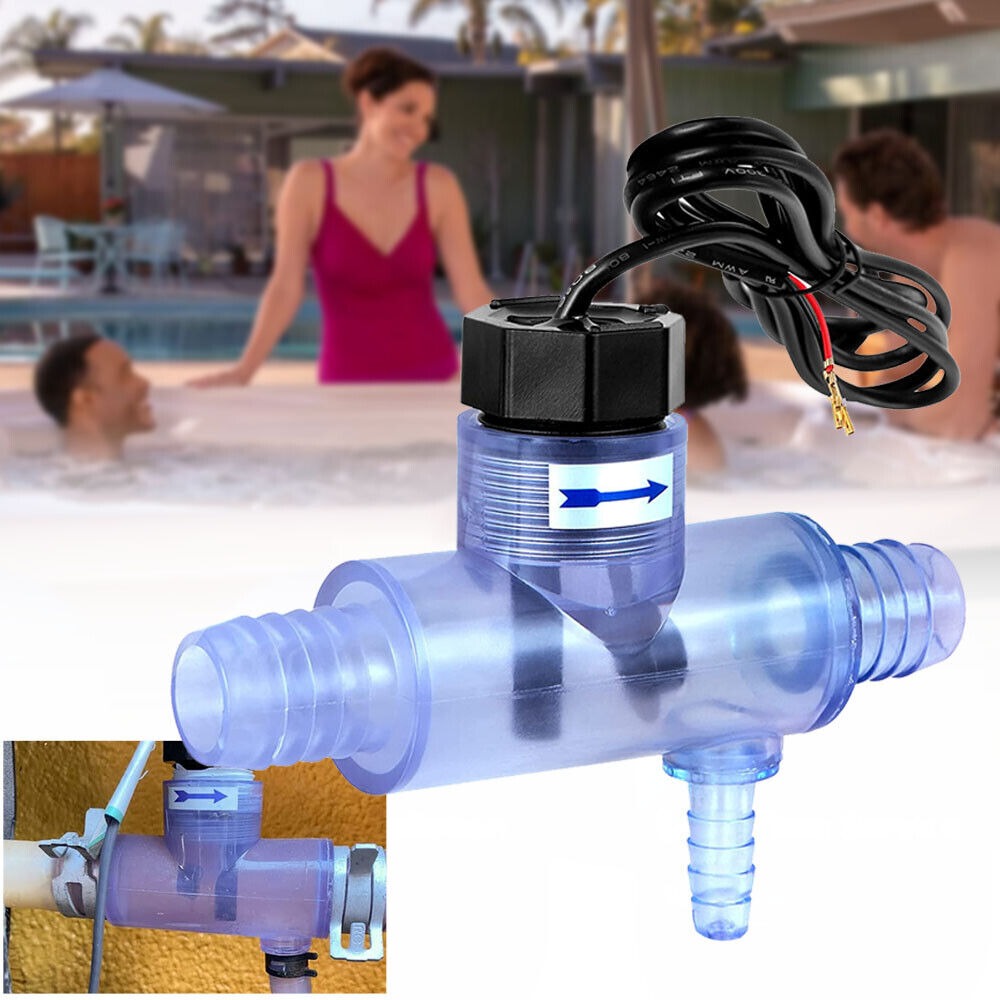

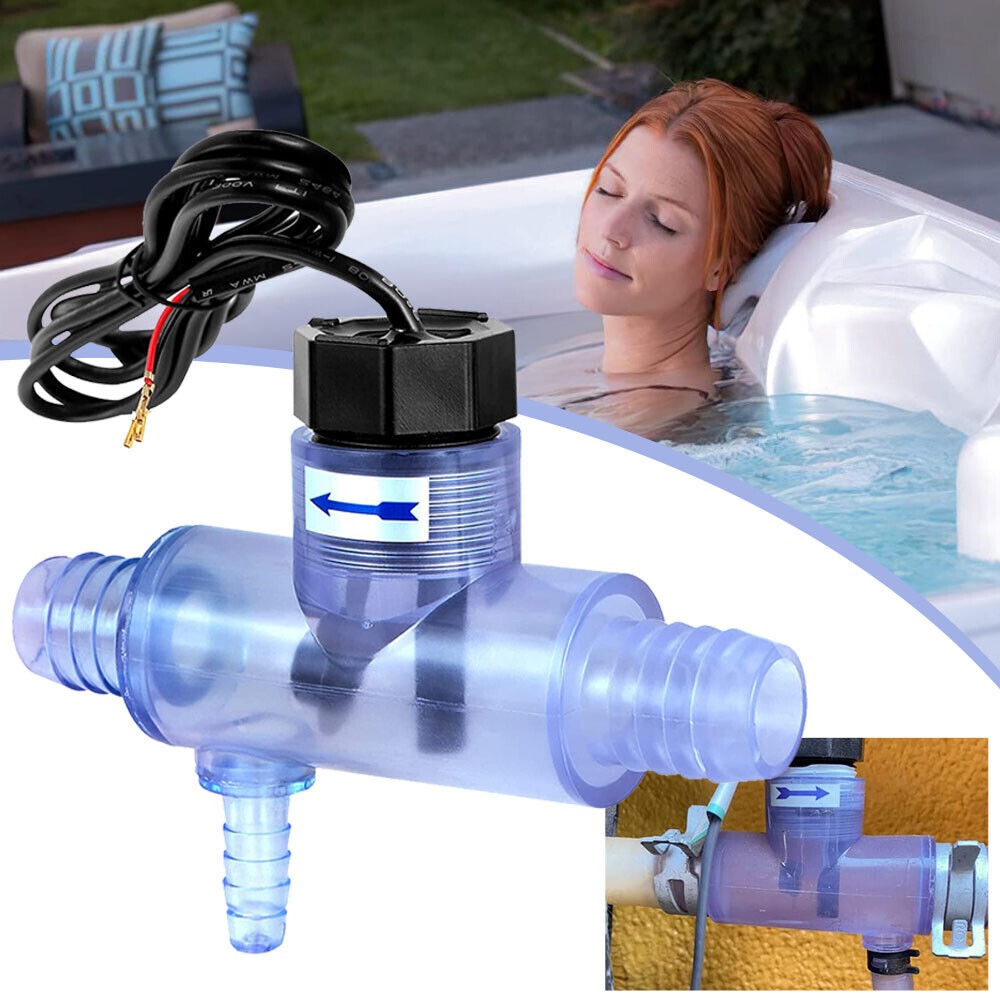

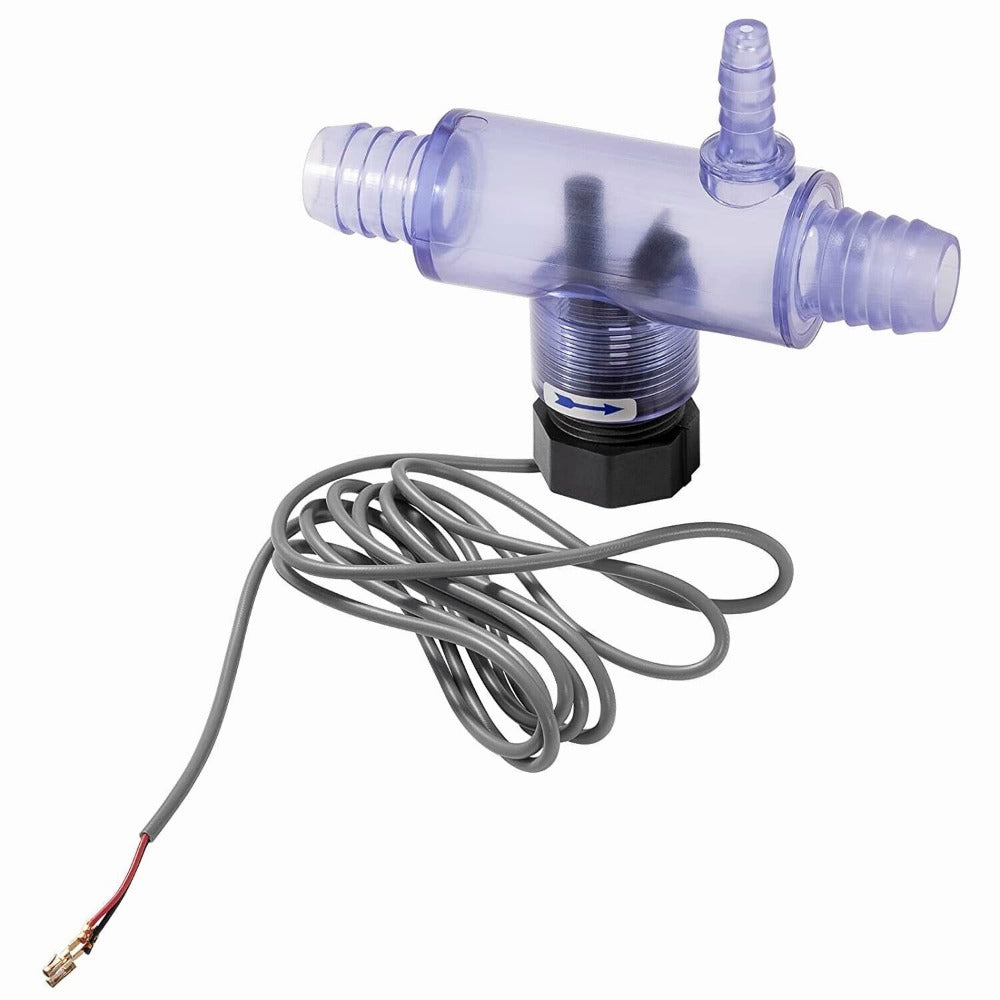

Flow Switch Assembly 6560-860 for Sundance Spas and Jacuzzi Hot Tub

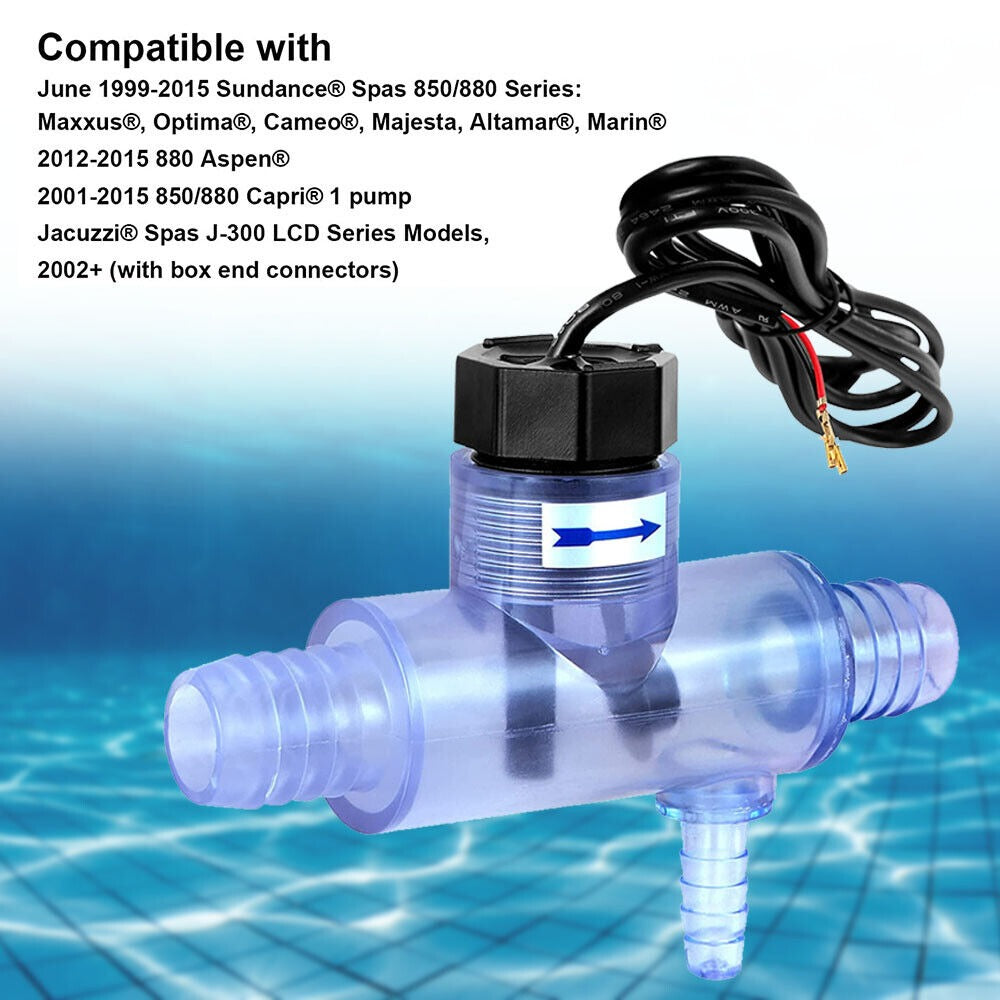

Used for Following Spa/Hot Tub Models:
• All 1999+ 2 pump or 3 pump systems and 2001+ 1 Pump Capri Systems.
• Sundance 800/850/880 Series: Maxxus, Optima, Cameo, Majesta, Altamar, Marin.
• 1999+ Sweetwater and Portifino series with circulation pump Jacuzzi J-300 LCD series models, 2002+ (with box end connectors)
• If you have a 2002+ LED J-300 please use the 2560-040 (curled finger connector).
• Replace part number: 6560-860

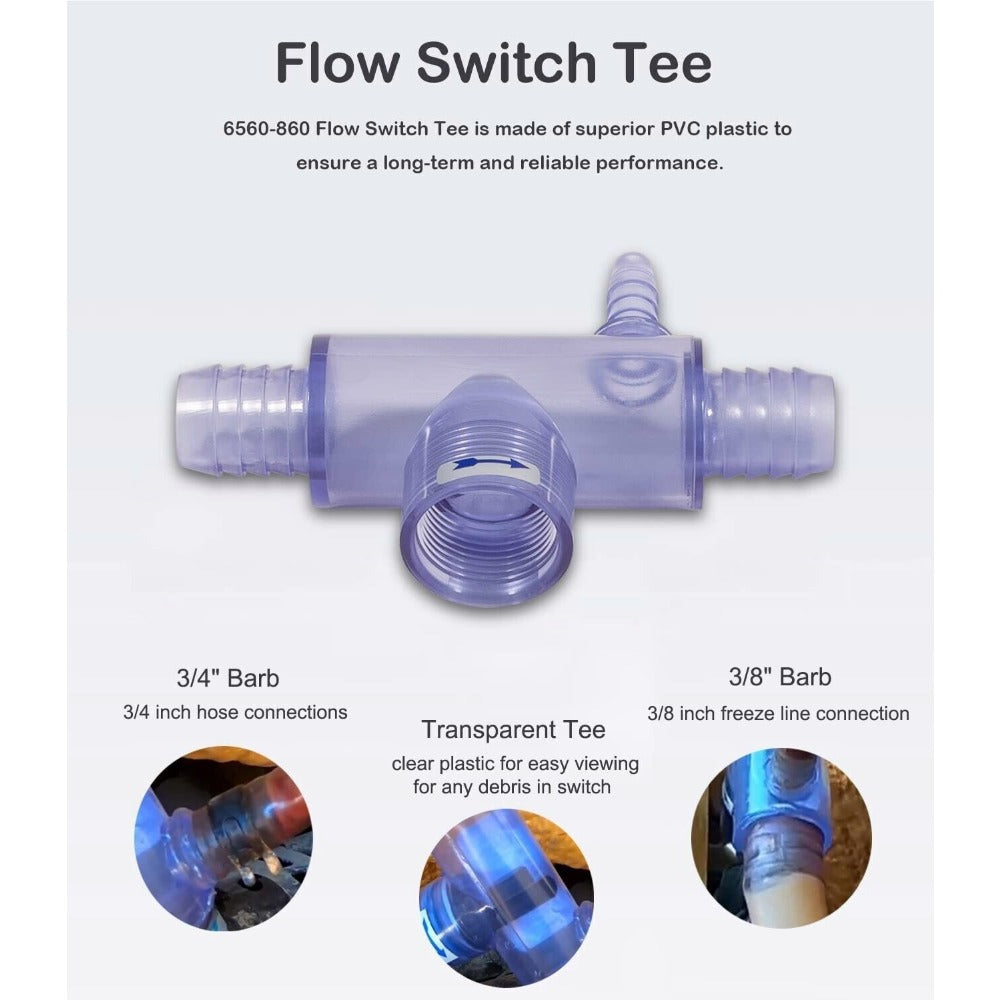

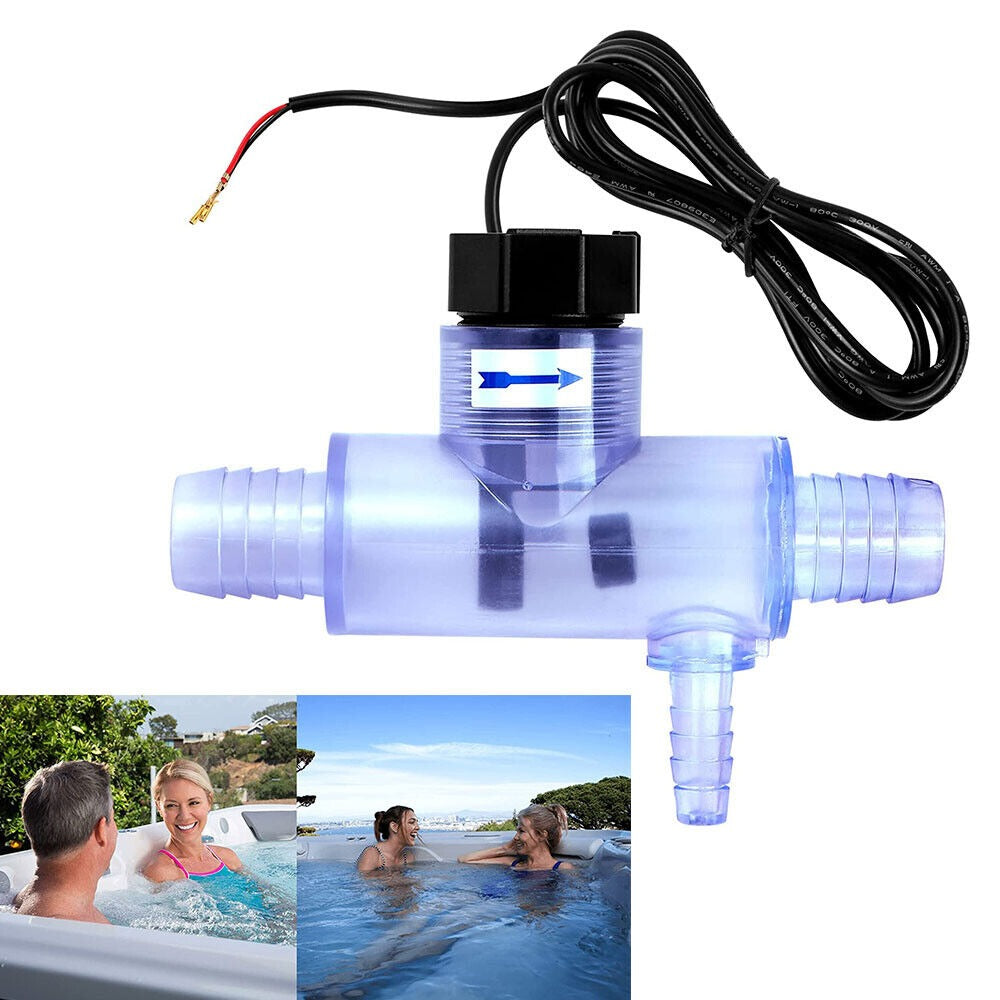

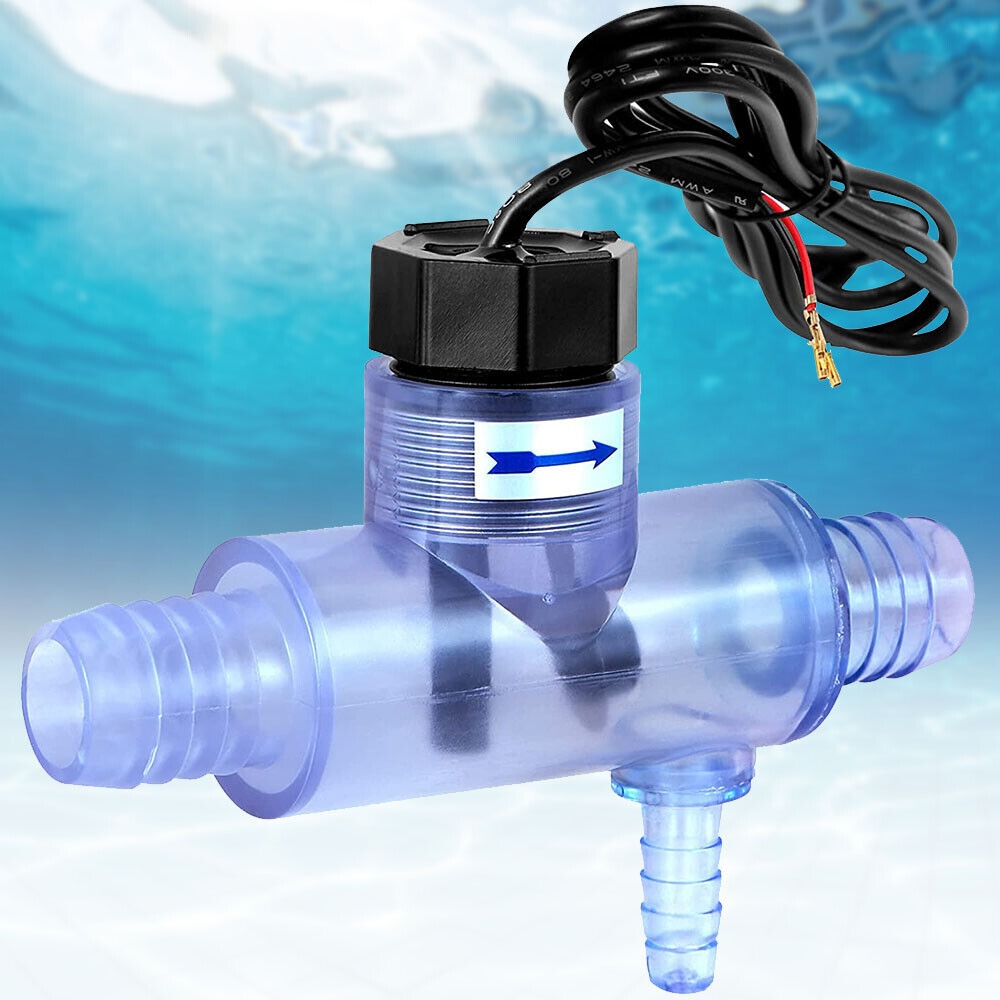

Flow Switch Tee

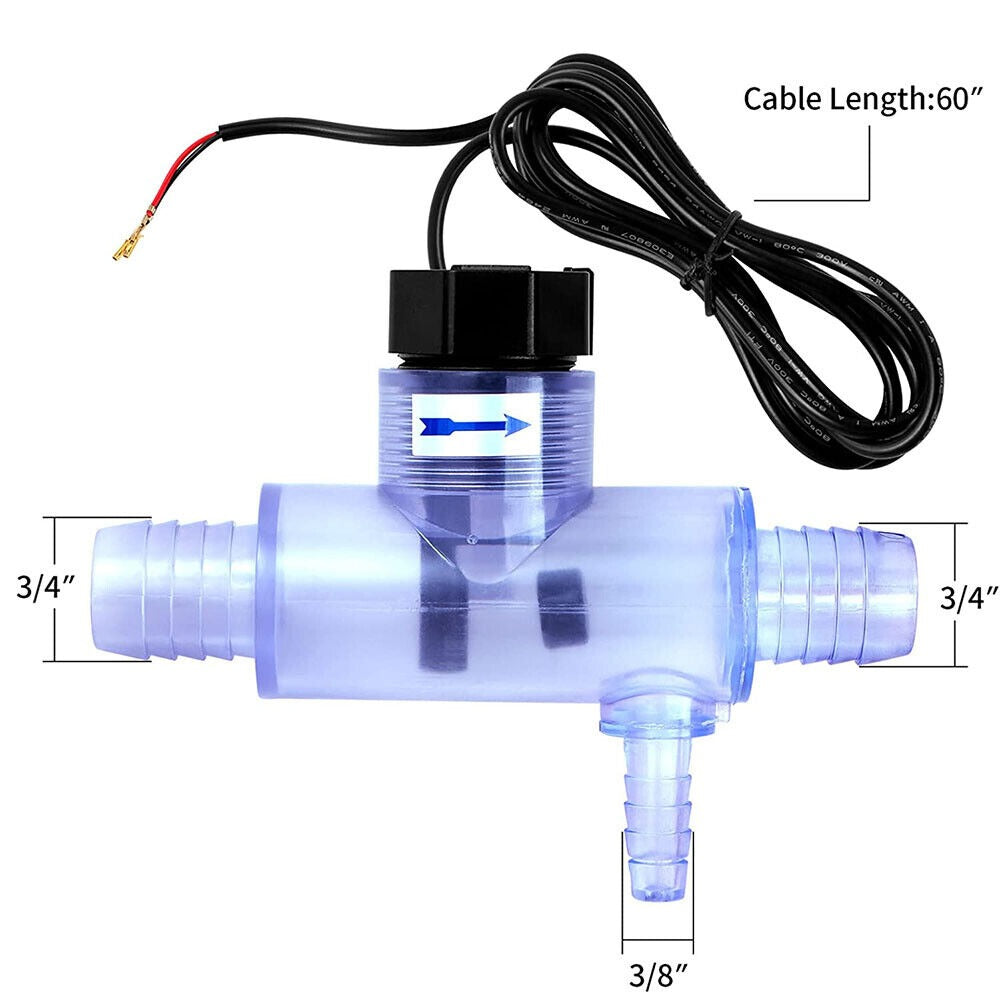

Flow switch with transparent housing tee, 3/4 inch barb and 3/8 inch barb off the side.

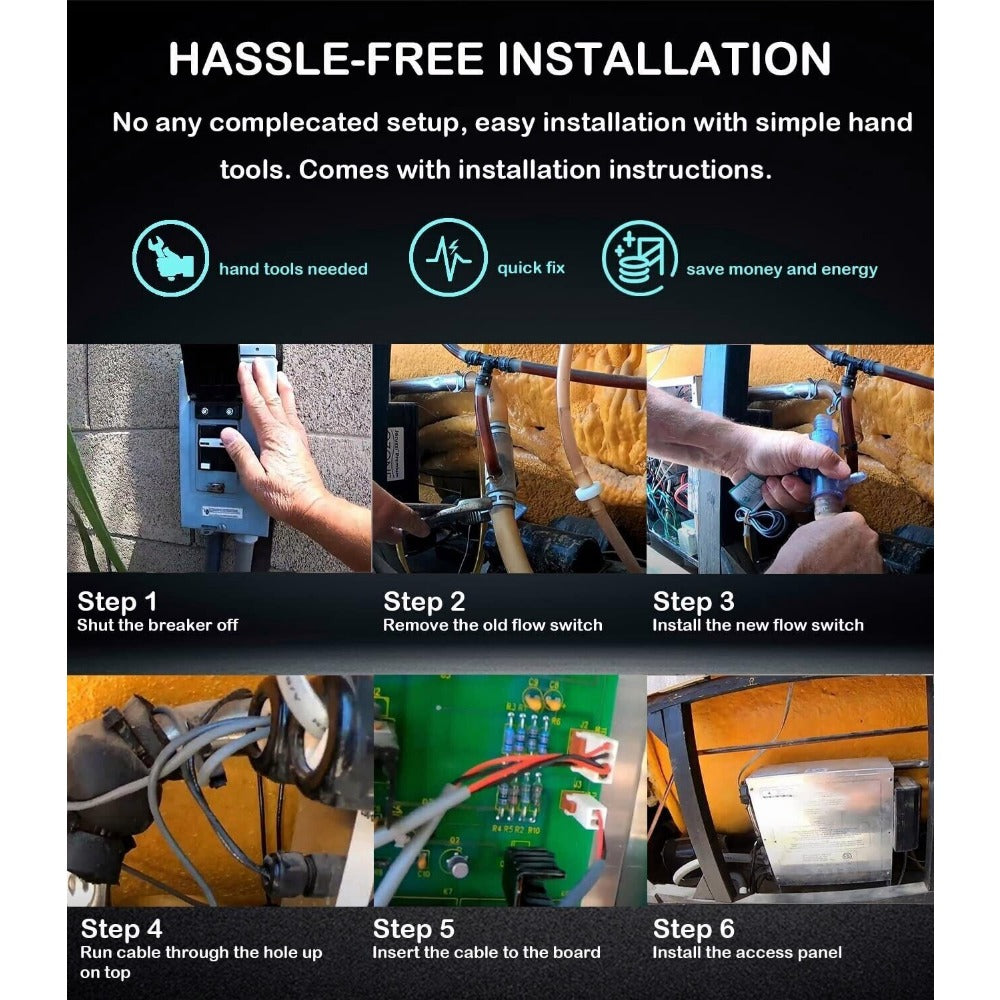

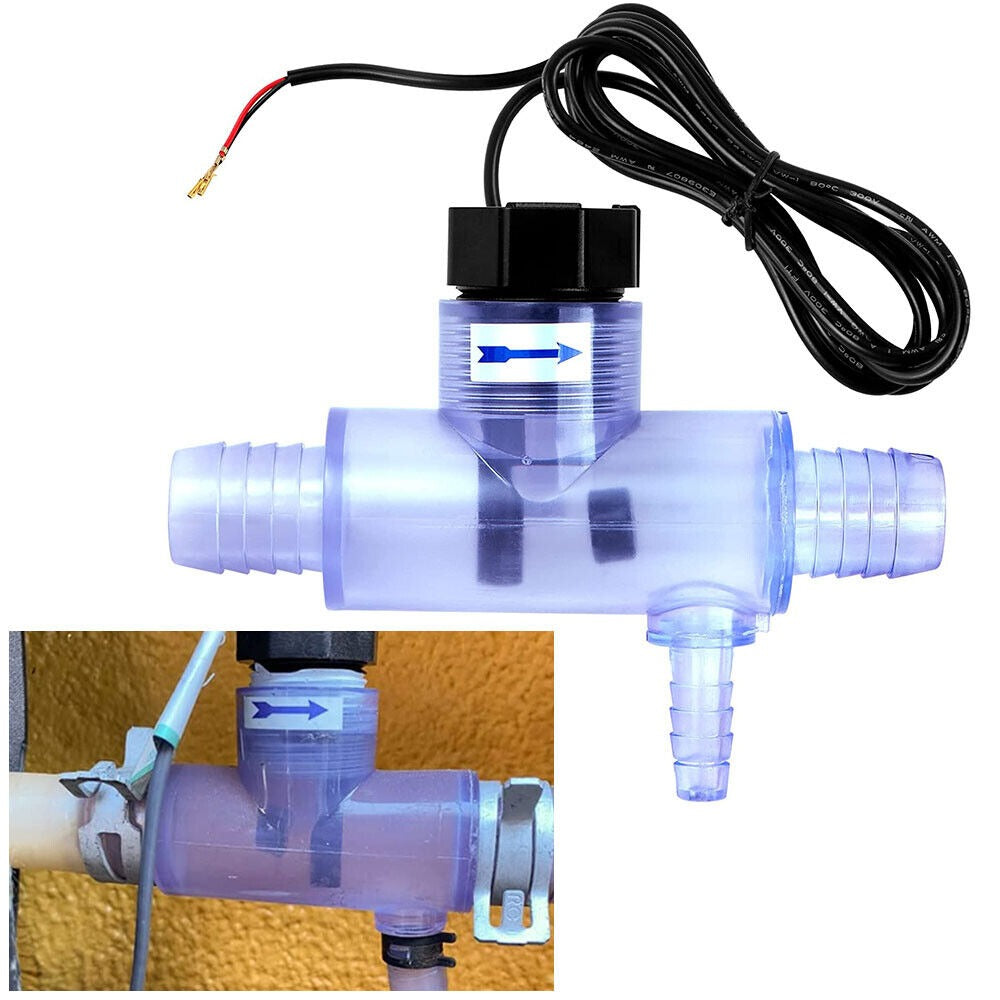

Easy to Install
Just unscrew the old flow switch and screw in the new one and saved a service call and a cost in the process.
Troubleshooting

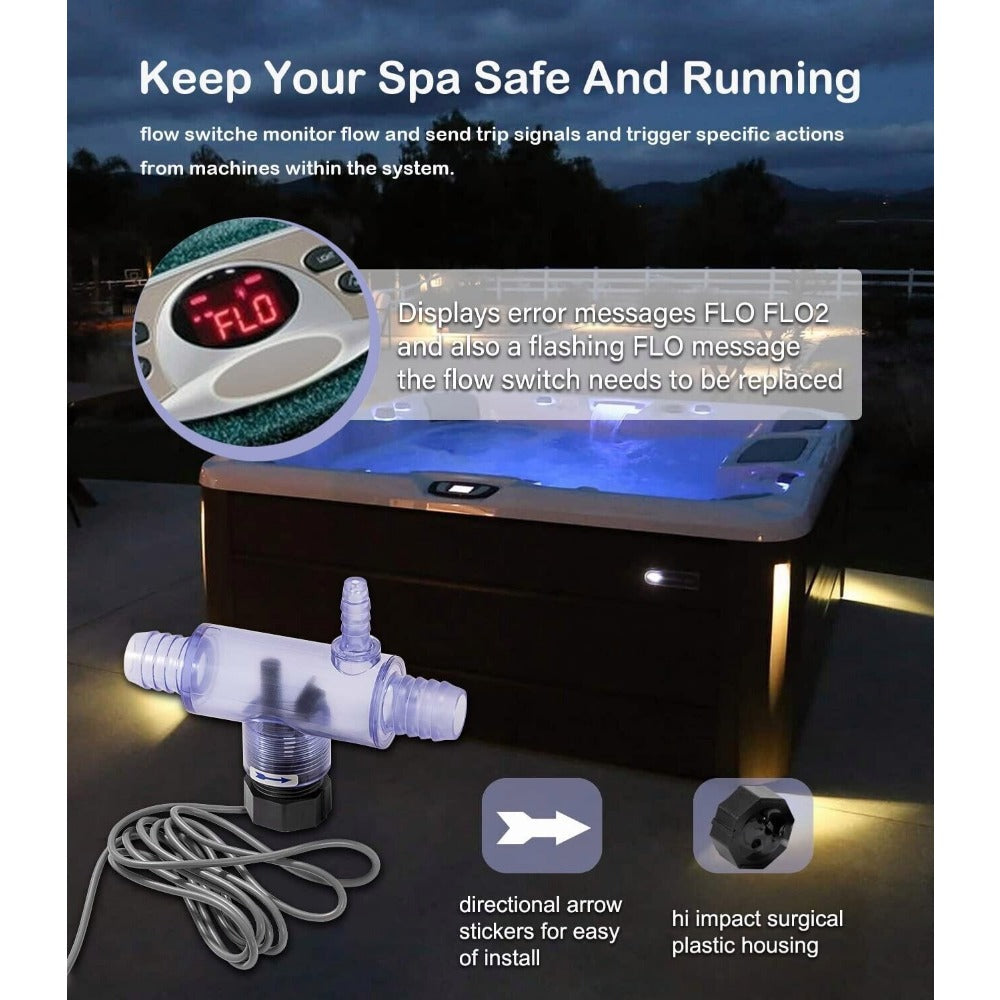

A defective flow switch will cause a "Flashing Flo" or "Solid Flo" on the Control Panel Icon. It is time to replace the flow switch if you get "Solid Flo" error. "Flashing Flo" may caused by defective flow switch, clogged or defective circulation pump, or dirty spa filter.

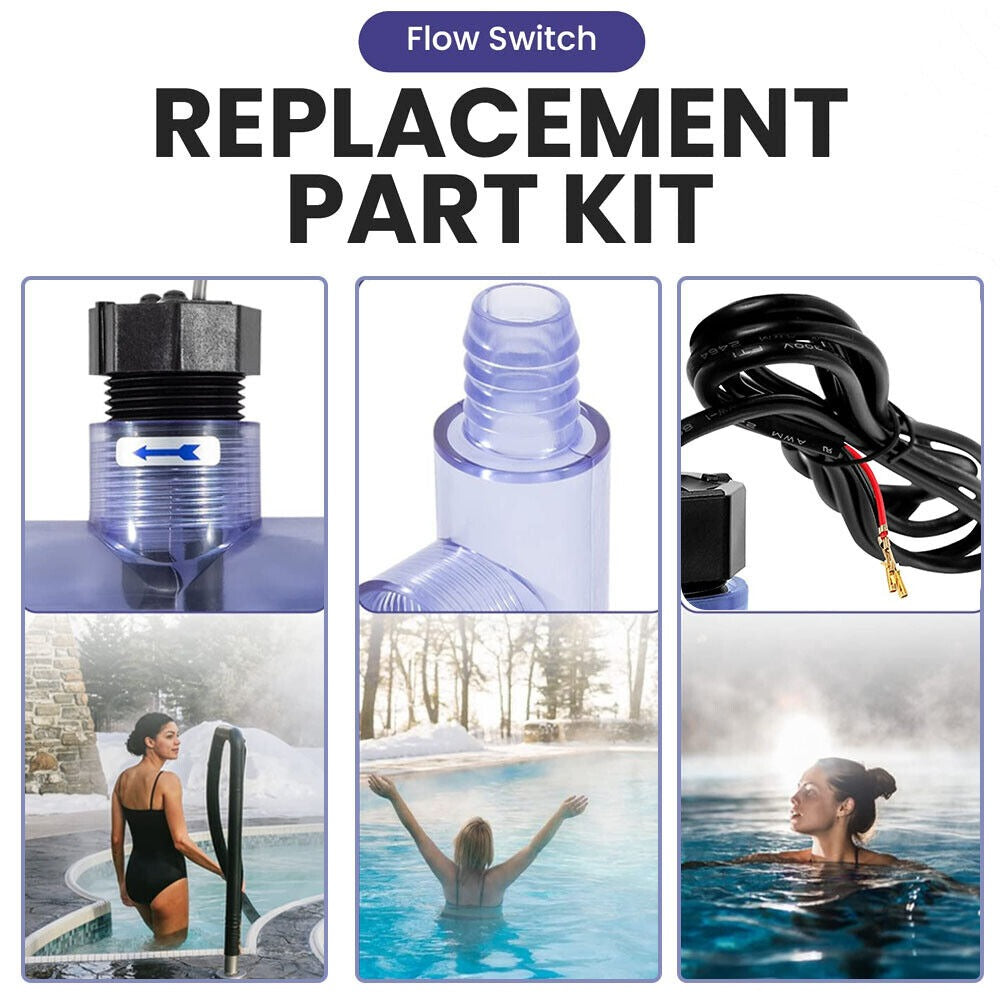

Package Include

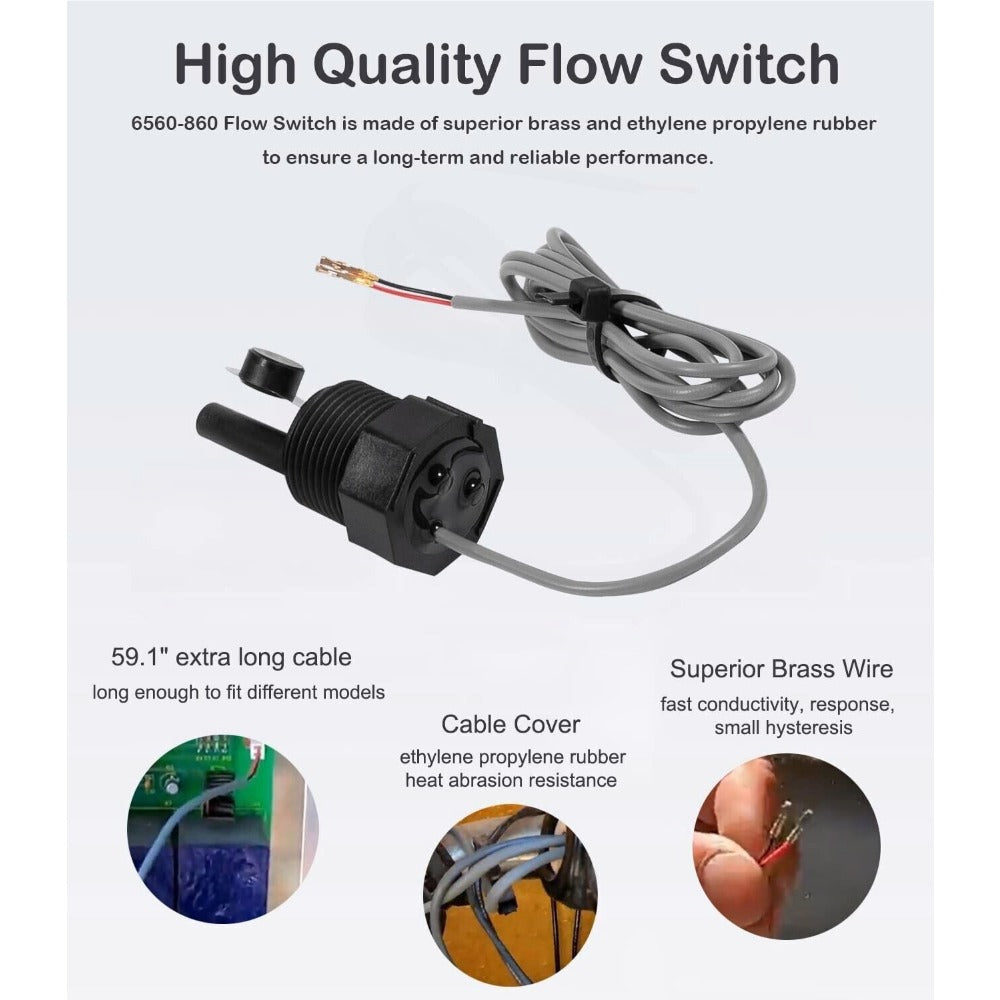

1 x Flow Switch with Cable
1 x Tee Housing
