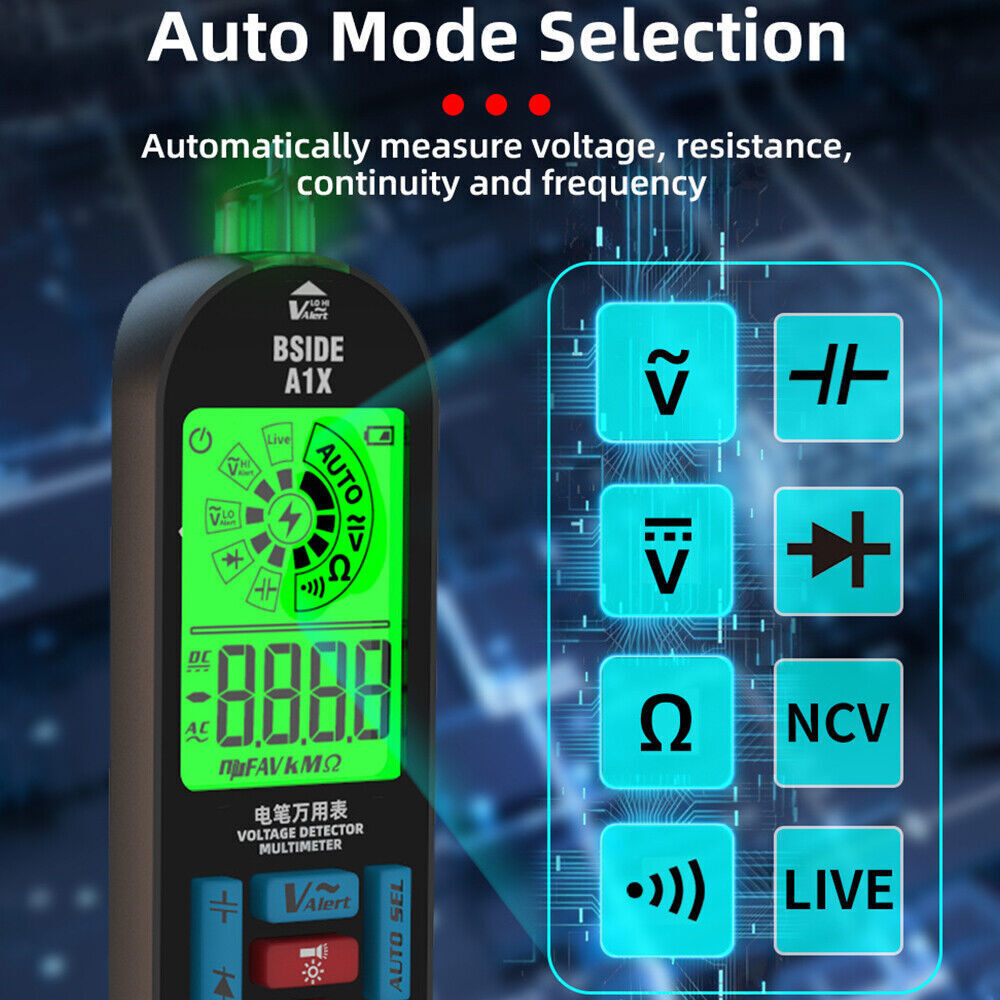

Features:

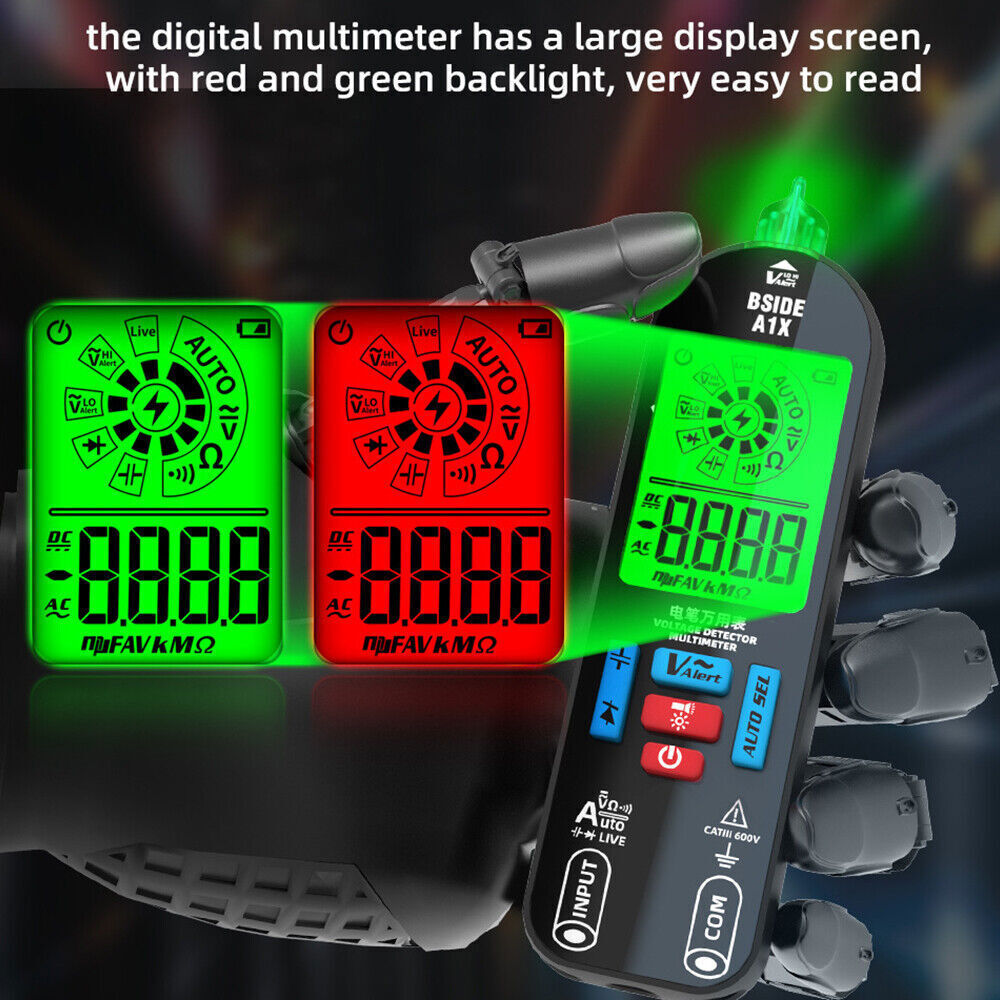

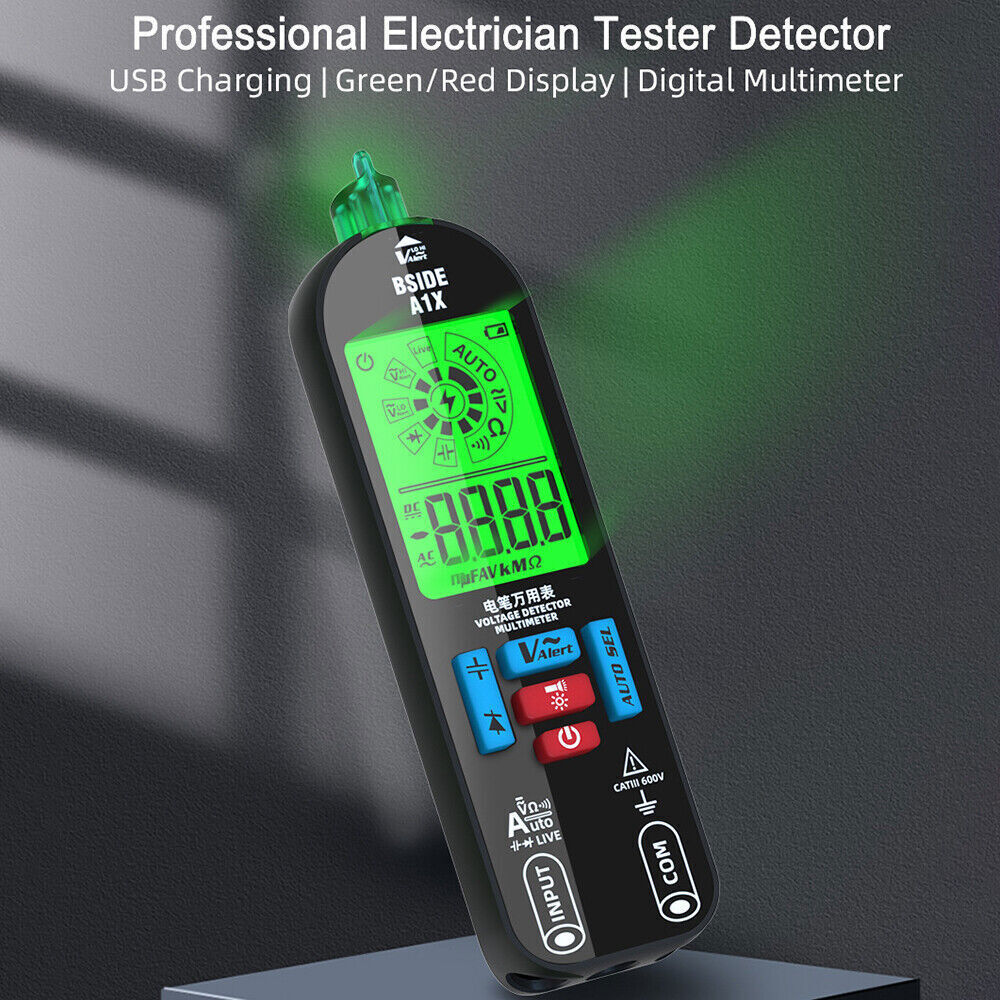

1. Red and green large screen backlight: red and green large screen display, the top lighting at the same time lit up fearless dark working environment

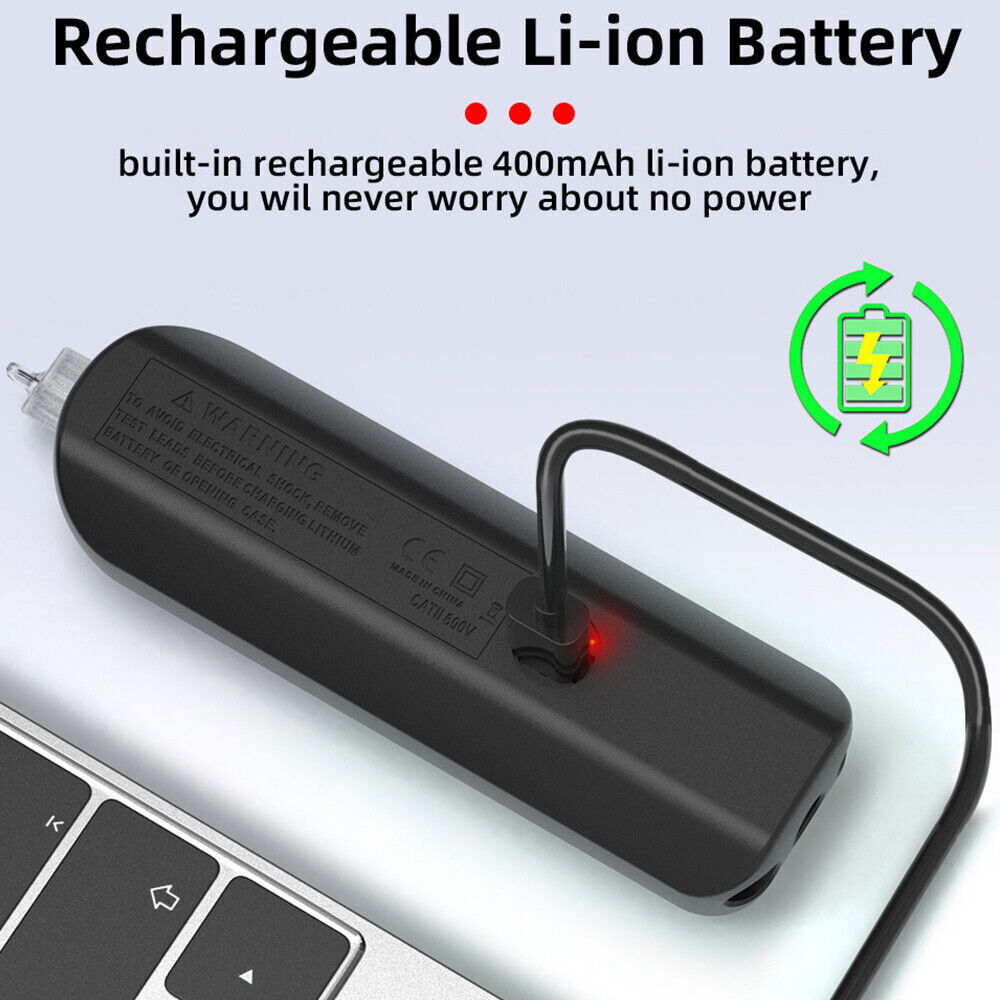

2. Lithium direct charging convenient and more worry-free: built-in 400mAh lithium battery, the use of Type-C charging cable, support for fast charging

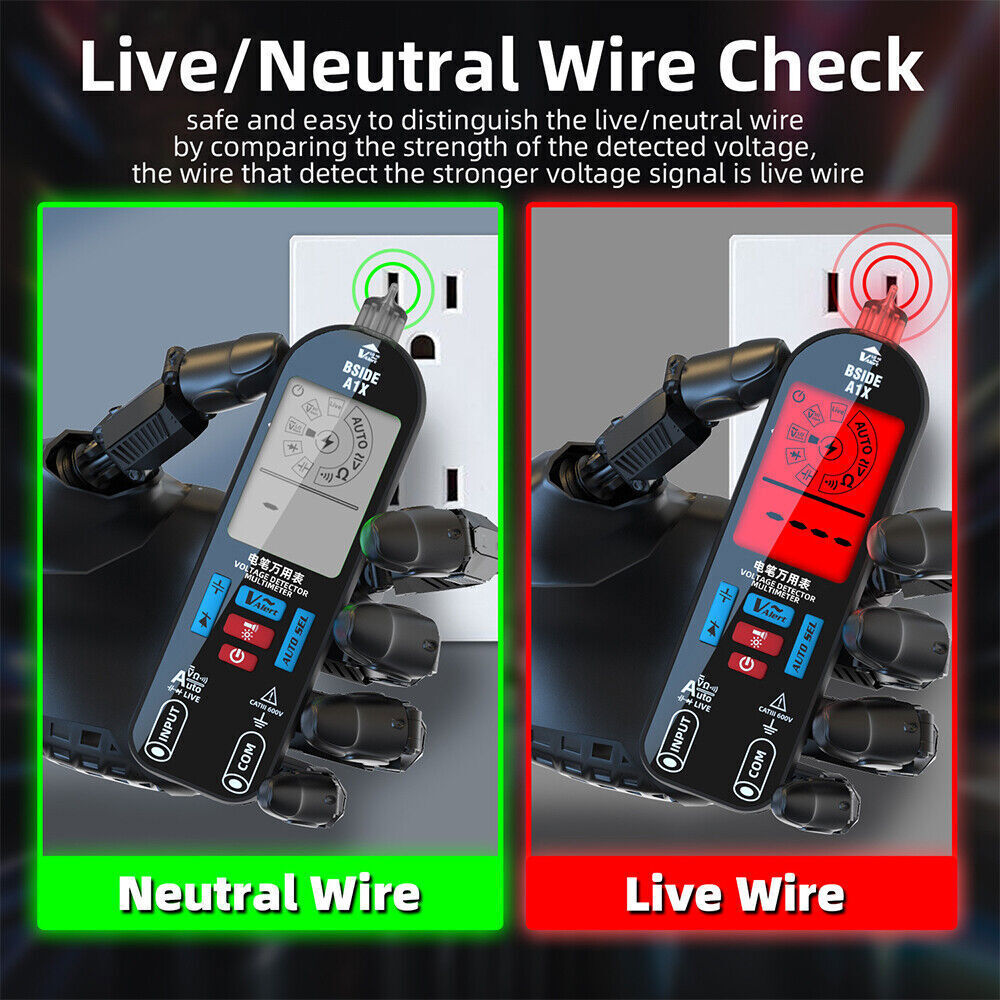

3. Non-contact zero fire line discrimination: insulation operation, safety check electricity, sound and light alarm, two-color display, signal weak screen green is zero line, signal strong screen red is fire line

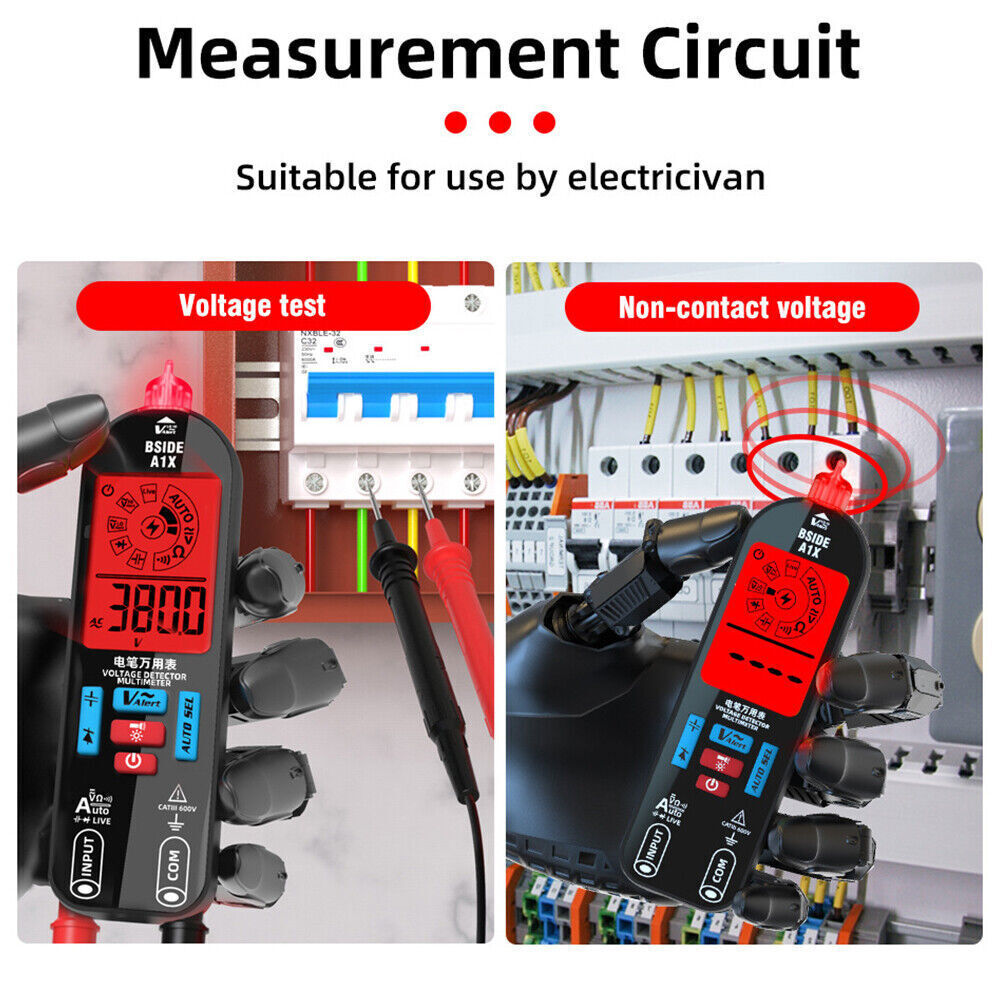

4. Daily electrical testing: to determine all kinds of circuit problems, lack of phase (zero / ground) short circuit / disconnect / distinguish between inductive electricity / leakage / check the breakpoints

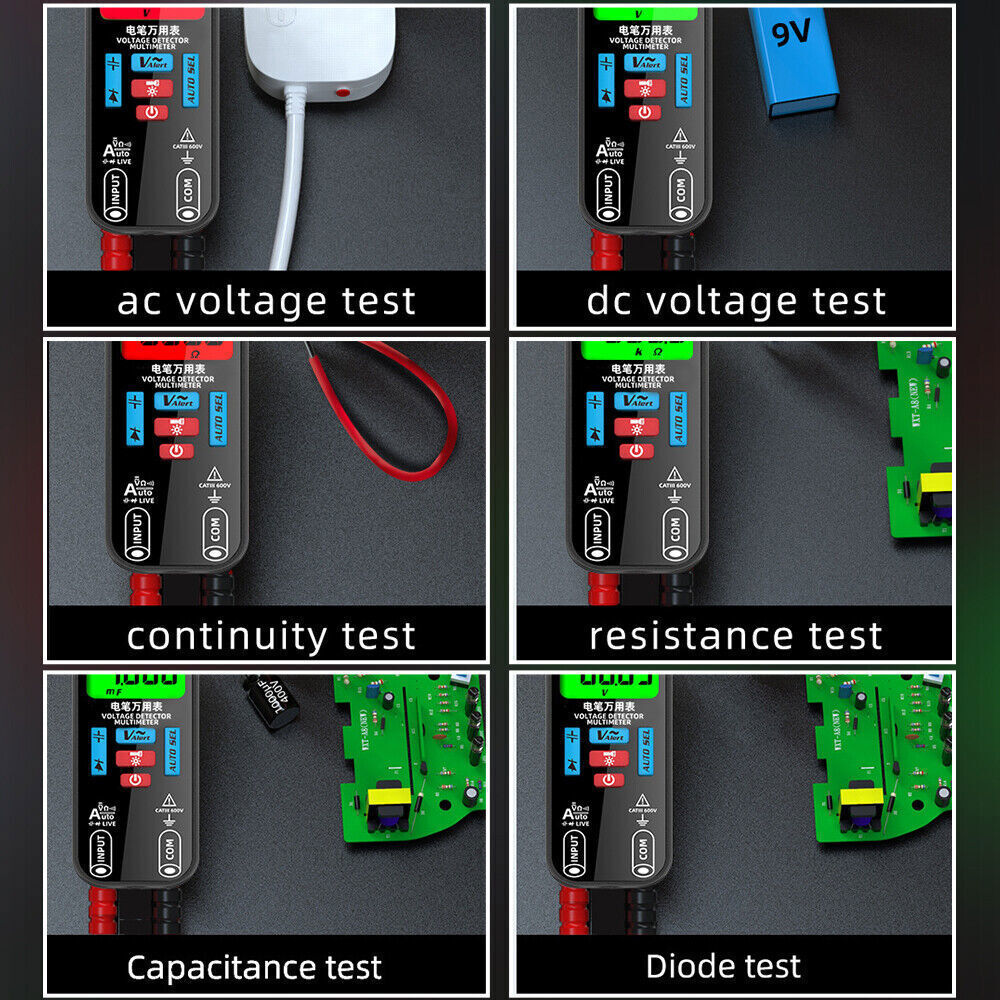

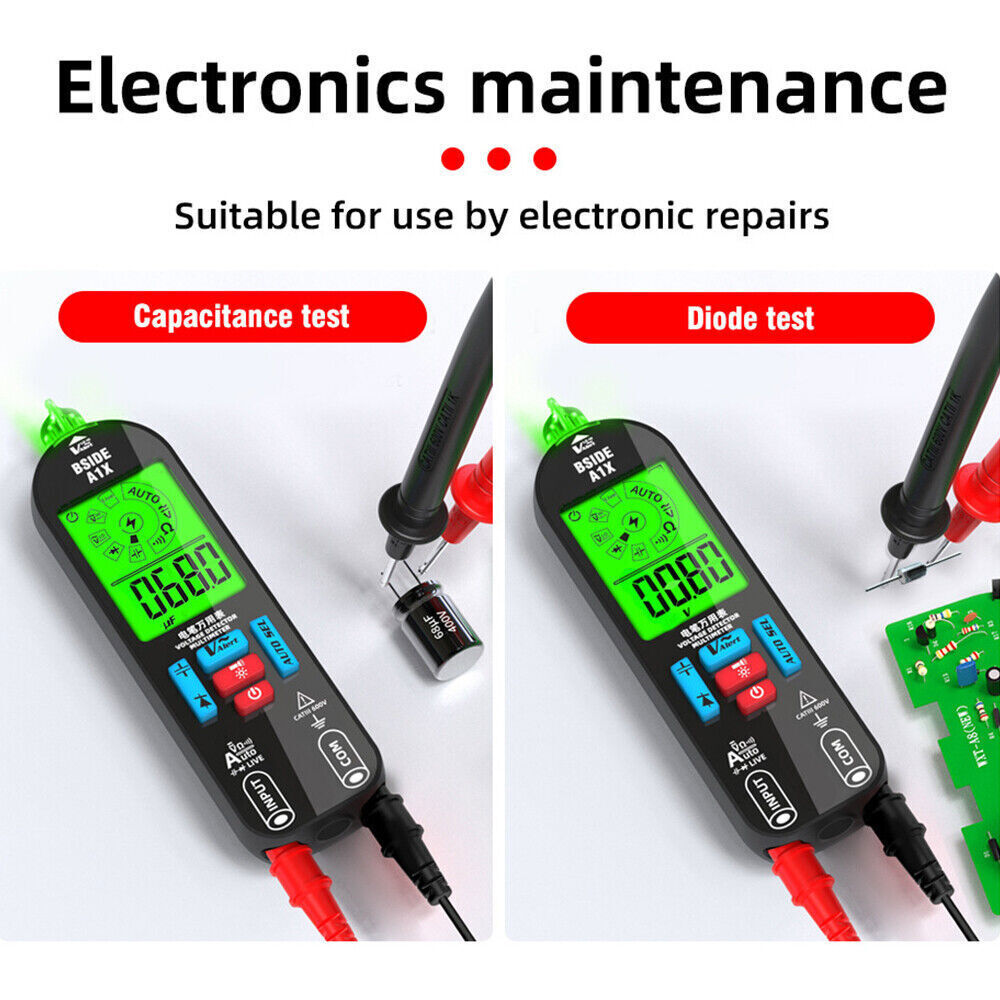

5. Electronic maintenance components detection: can detect resistors / capacitors / diodes / fuse, etc.
Product Parameters:
Model: A1X
Maximum count: 1999
DC voltage: 0~520V (DC mode), 0.5~520V (auto mode), resolution: 0.001V, accuracy: ± (0.8%+3)

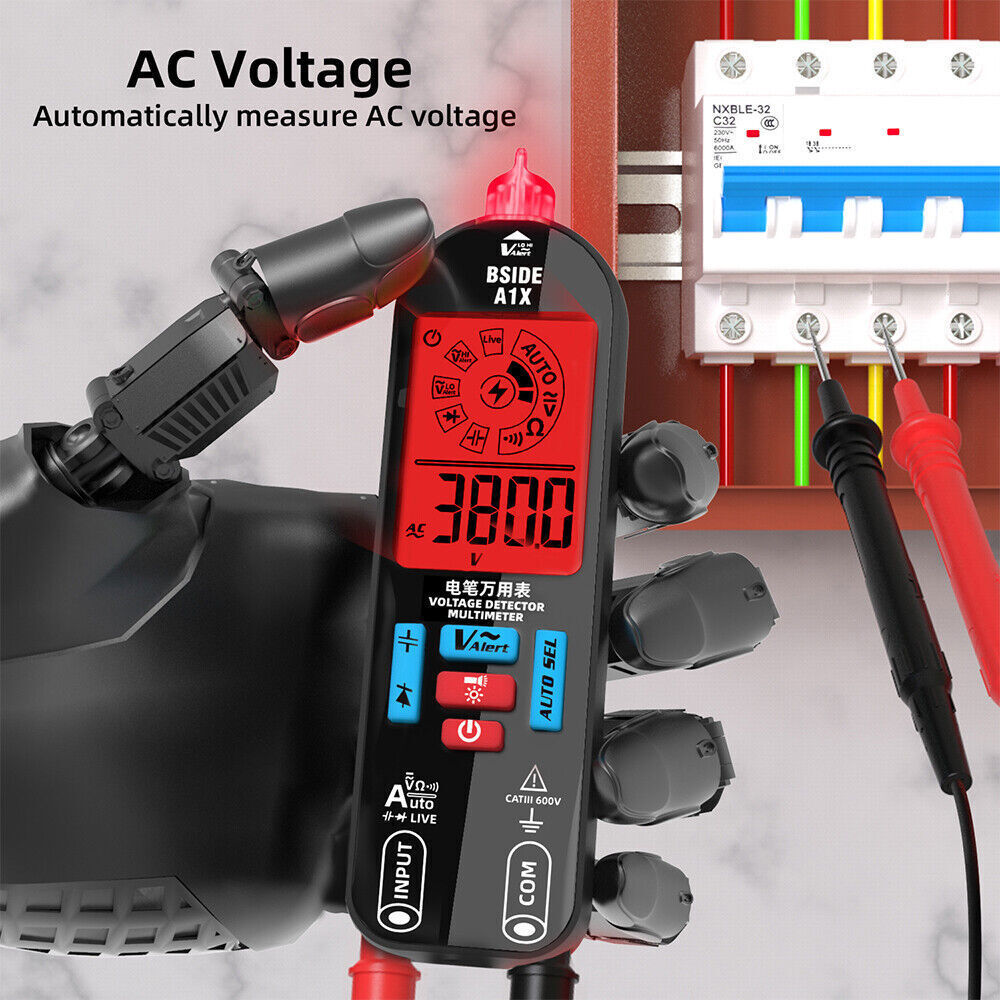

AC Voltage: 0~520V (DC mode), 0.5~520V (auto mode), Resolution: 0.001V, Accuracy: ± (1.2%+5)
Resistance: 0.0Ω~19.99MΩ, Resolution: 1Ω, Accuracy: ± (1.2%+5)

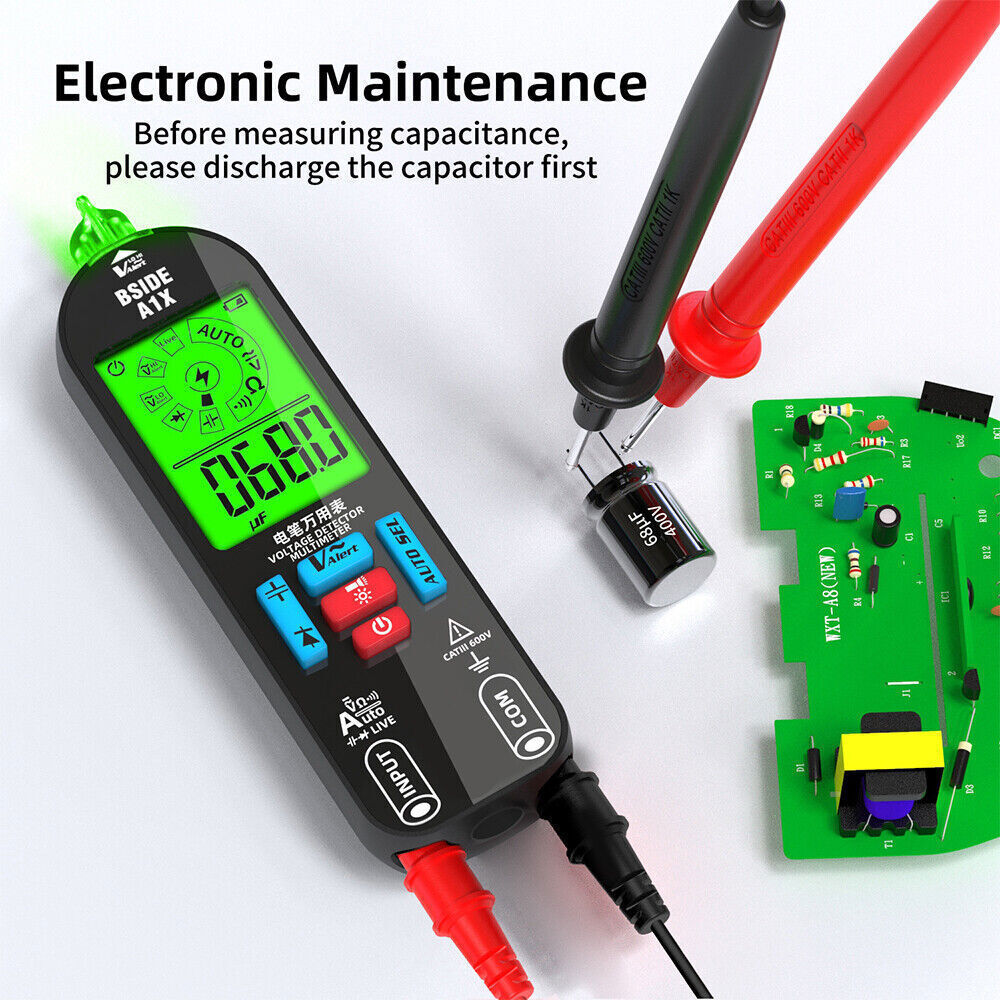

Capacitance: 1nF~1999μF, Resolution: 0.01nF, Accuracy: ±(3.5%+8)
On-off: when the measured resistance <50Q, the buzzer sounds
Diode: less than 3V diode automatic identification
Automatic shutdown: 15 minutes
Non-contact voltage detection: √
Zero fire wire discrimination: √
Flashlight: √
Battery: Built-in 400mAh 3.7V lithium battery
Charging interface: Type-C

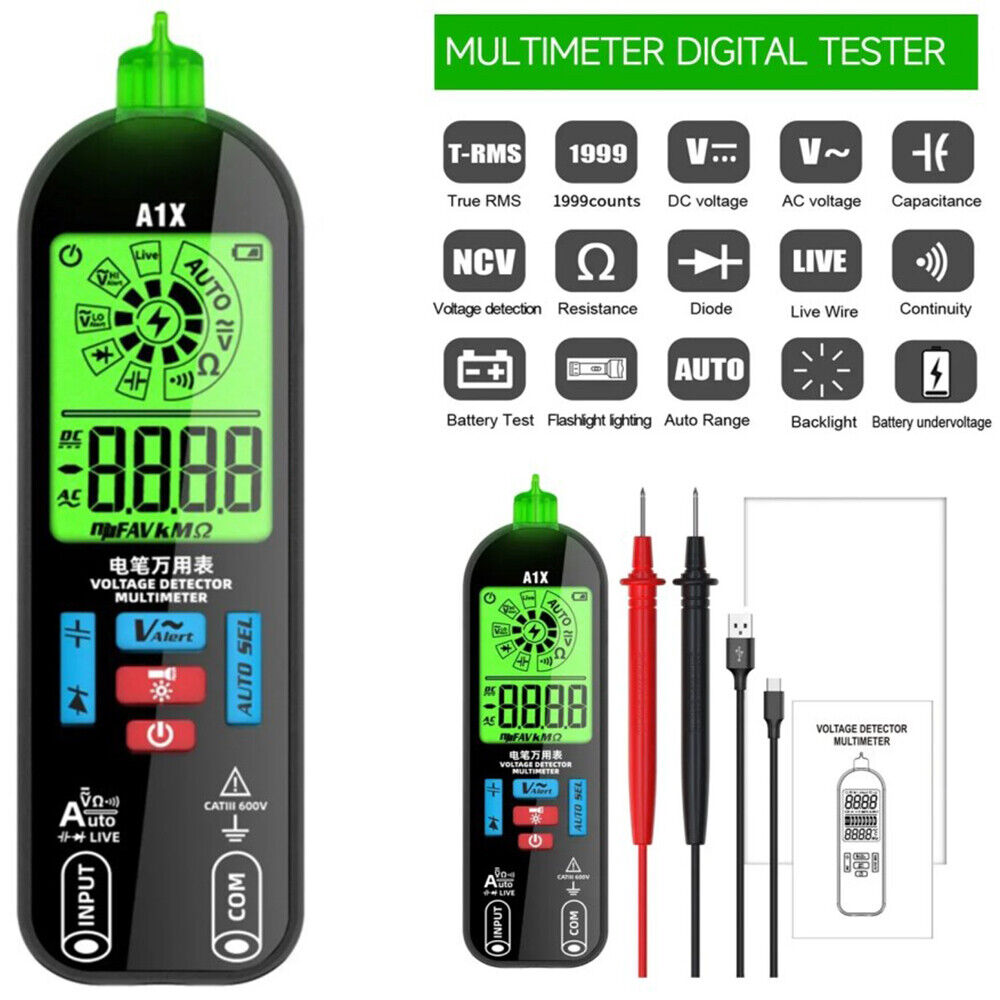

Standard Version Packaging Packaging list:
1*Basic package: host
