Mini Composite 1080P HDMI to RCA Audio Video CVBS AV Adapter Converter For HD TV

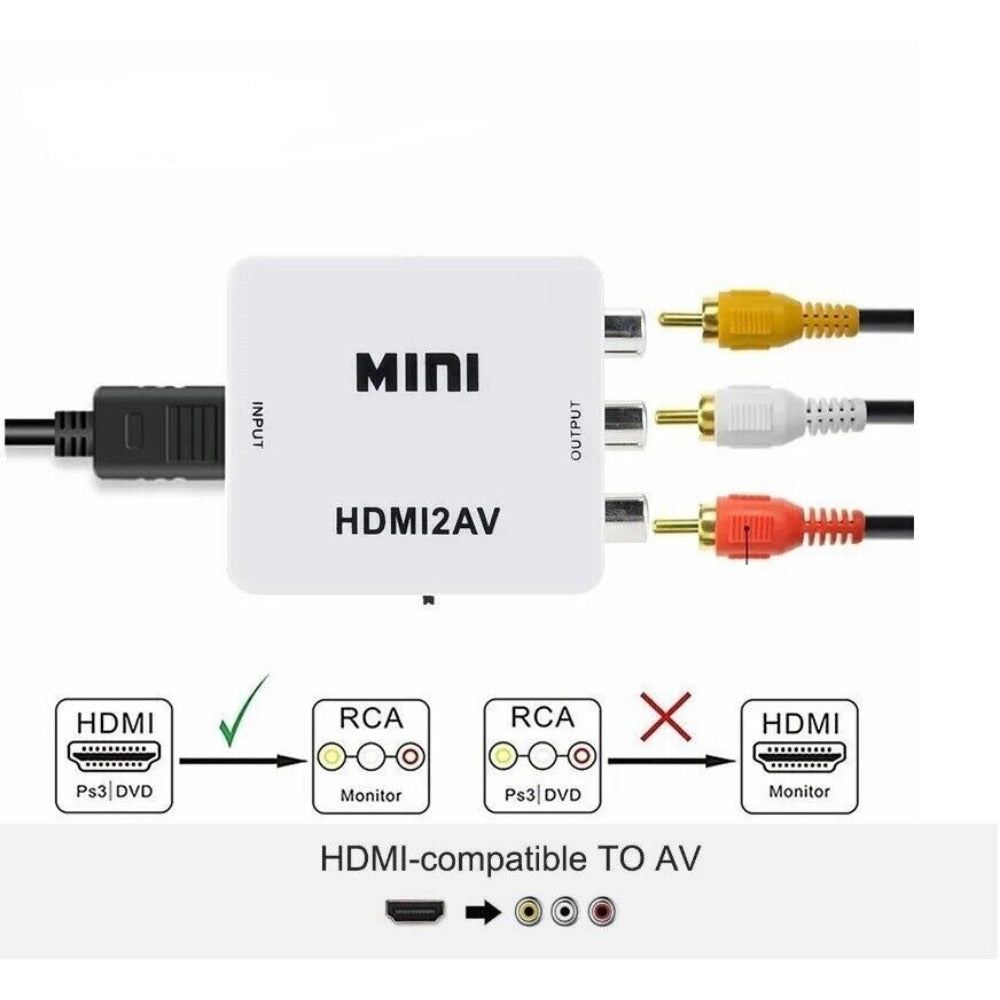

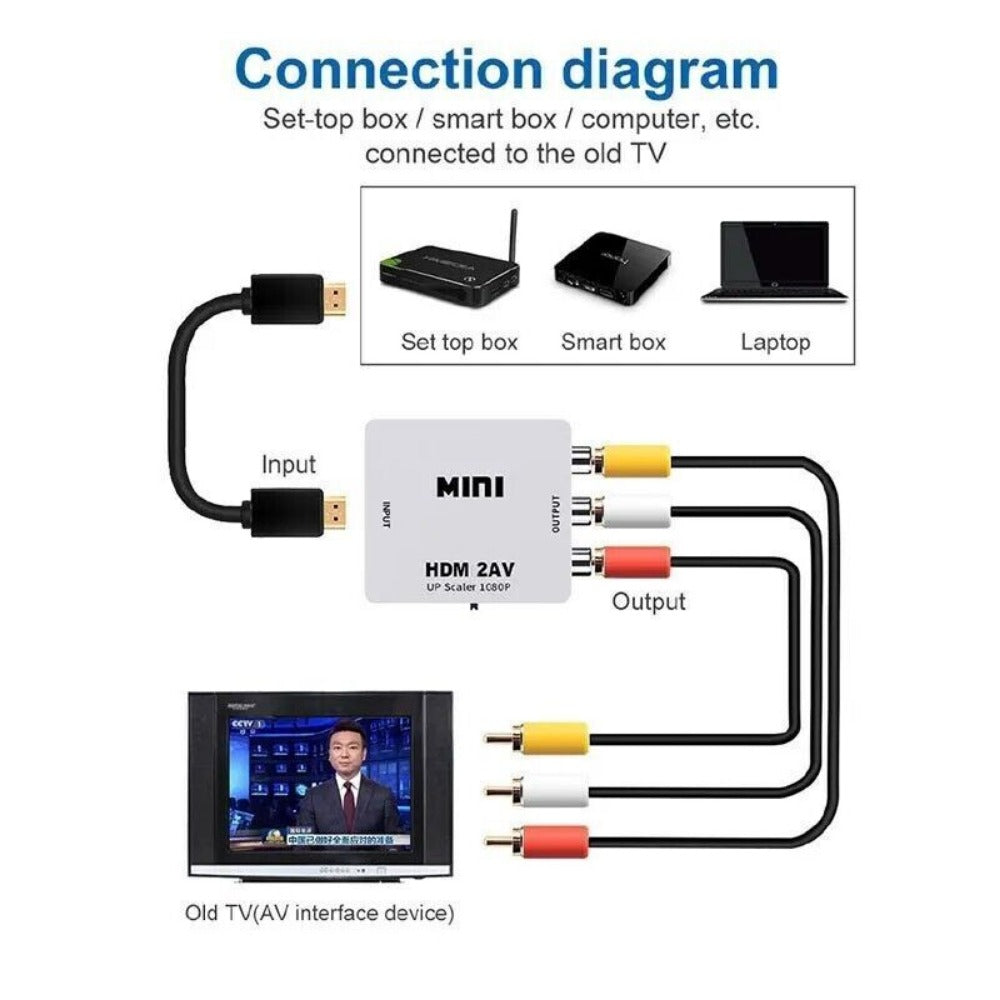

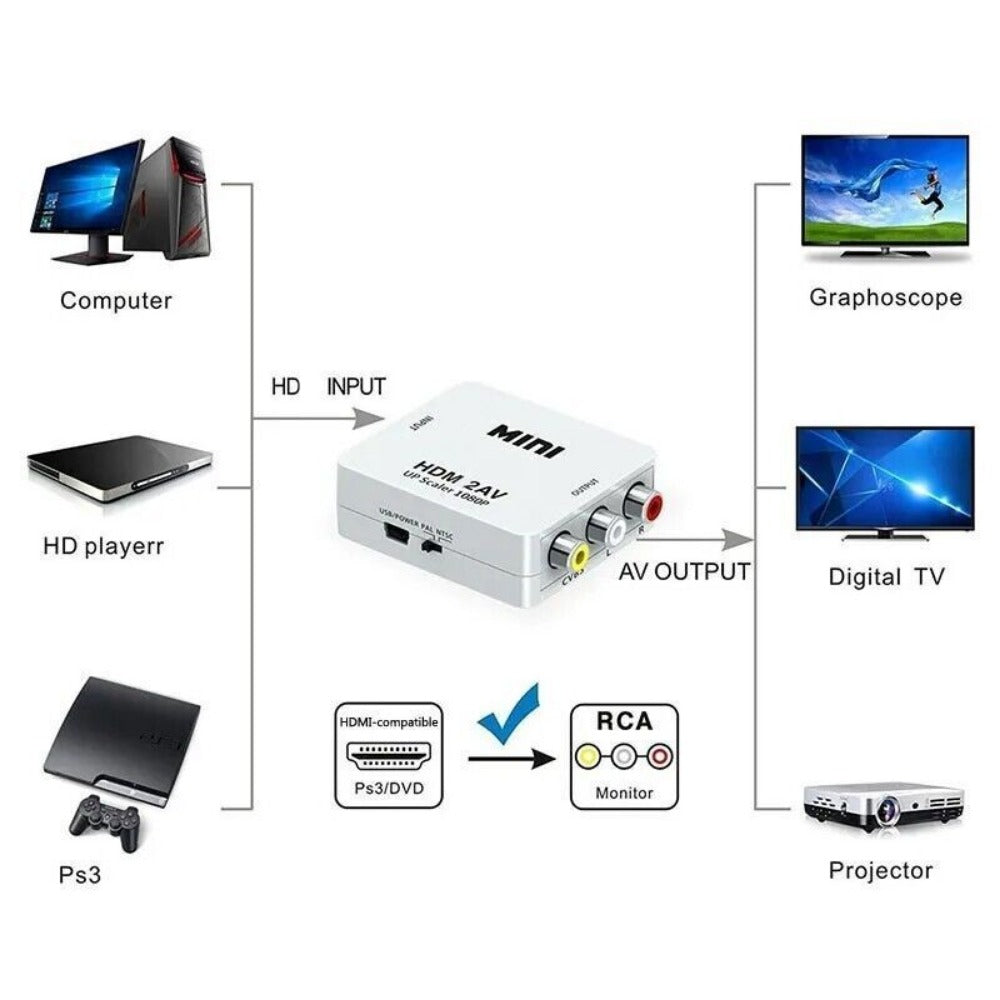

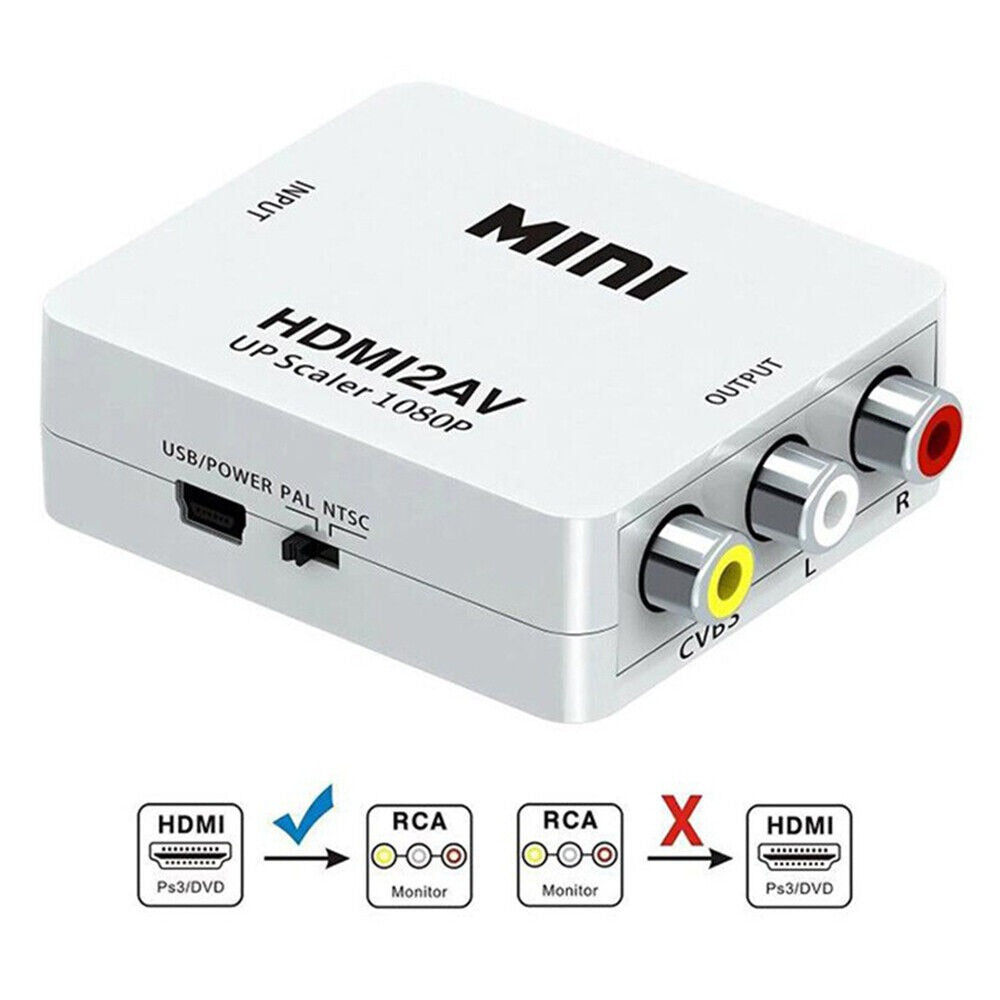

The MINI HDMI to AV audio signal converter can convert HDMI video signal or audio signal to AV compo sit video signal and the FL/ FR stereo audio signal, can convert the high quality HDMI video signal into normal CVBS signal(standard-definition 480i, 576i) Which can Play on TV, VHS VCR,DVD recorders etc, and support NTSC, PAL TV Format .
Features
1. No need to install drivers, portable flexible plug and play.
2. Low power No power adapter.
3. Support NTSC and PAL two standard TV formats output.
4. Compatible HDMI1.3
SPECIFICATIONS
1. Input ports:1xHDMI

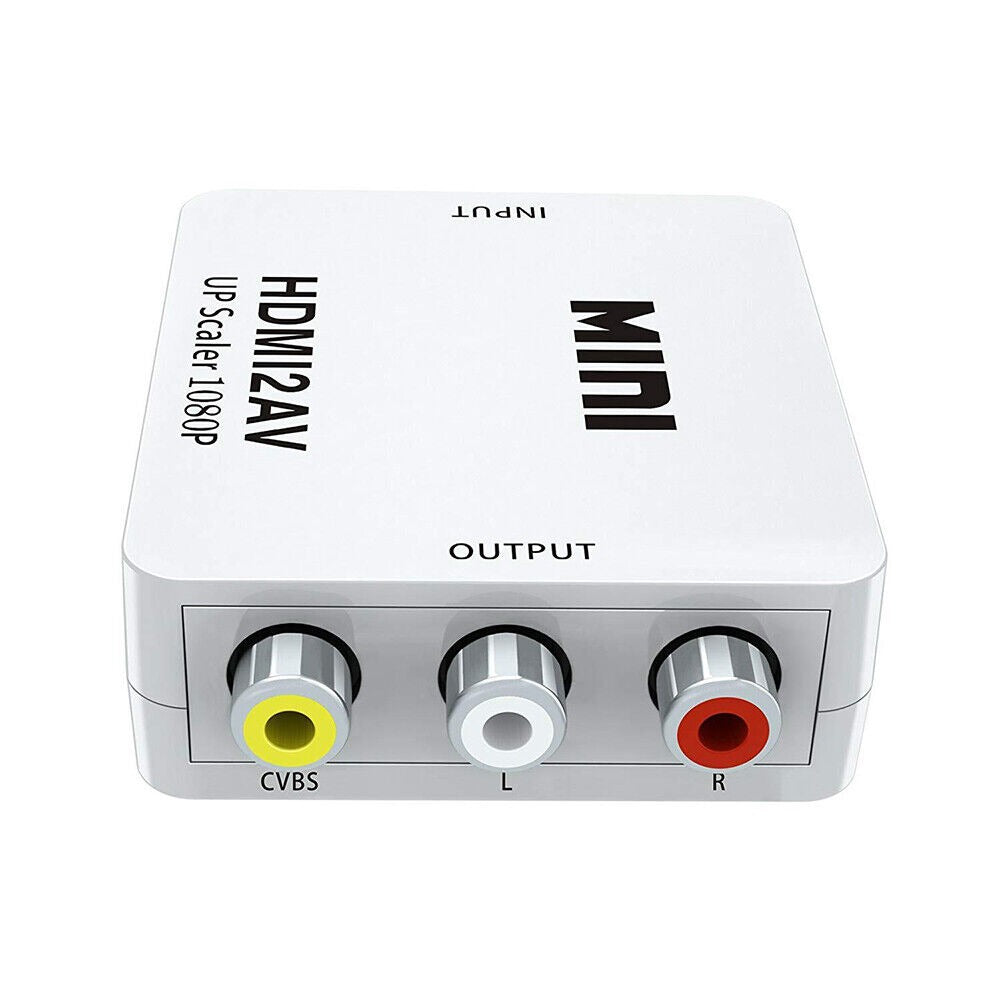

2.Output ports:AV(Yellow,White,Red)

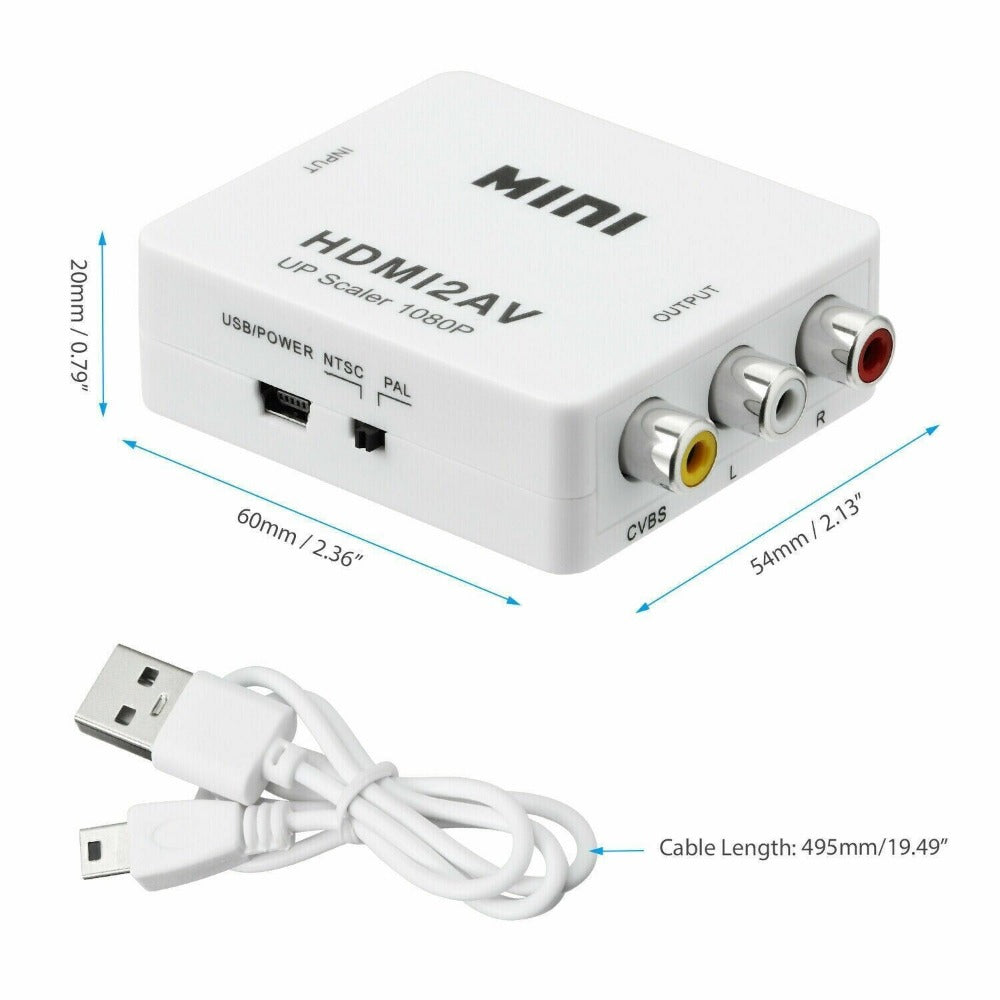

3.Dimensions(mm):66(D)x55(W)x20(H)
4.Weight(g):40

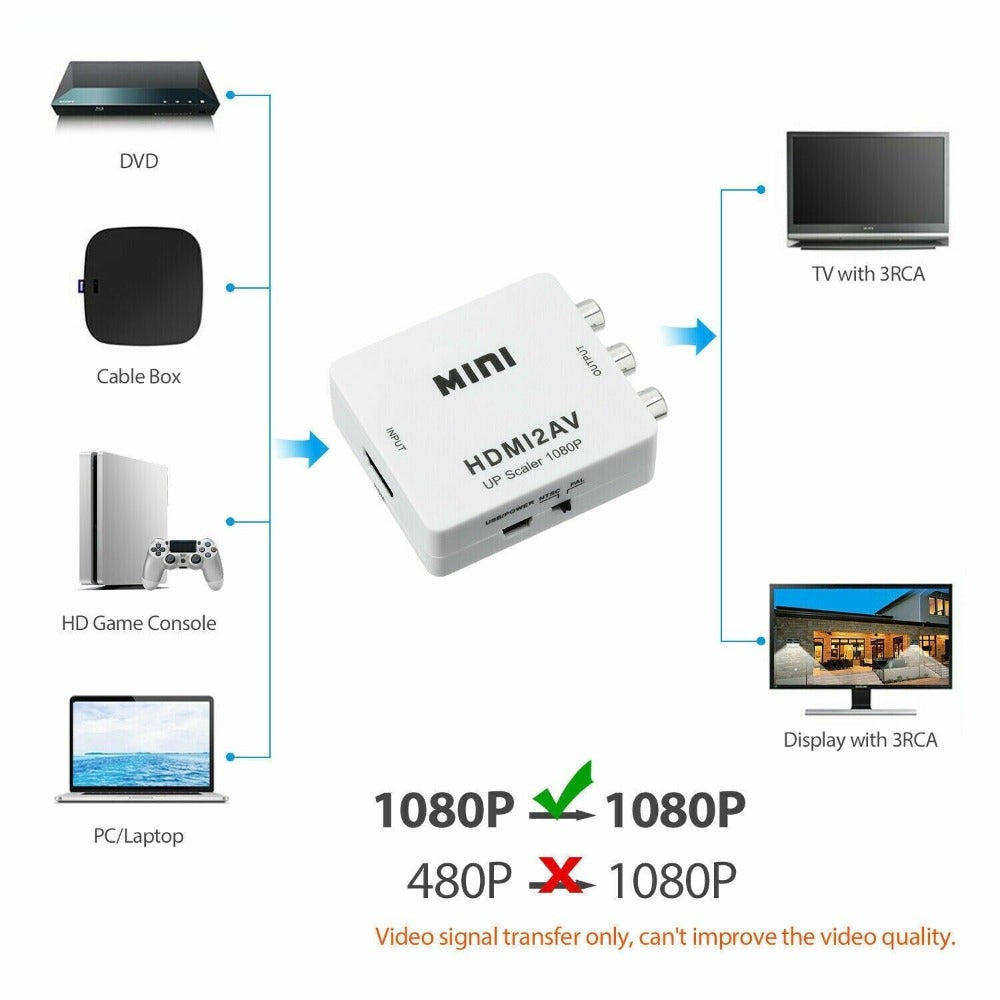

5.HDMI Input Resolution:
640x480@6OHz,800x600@60Hz,
1024x768@60Hz,1280x720@60Hz,
1280x1024@60Hz,1360x768@60Hz,
1600x1200@60Hz,1920x10800@60Hz,
480p/60HZ, 576p/60HZ,
720p50/60Hz,1080150/60Hz,1080p50/60Hz.
6. CVBS output: PAL NTSC_M, and(NTSC_J)
PACKAGE CONTENTS:
1Pcs Main unit( HDMI to AV Convener)
1Pcs USB Cable
Note:

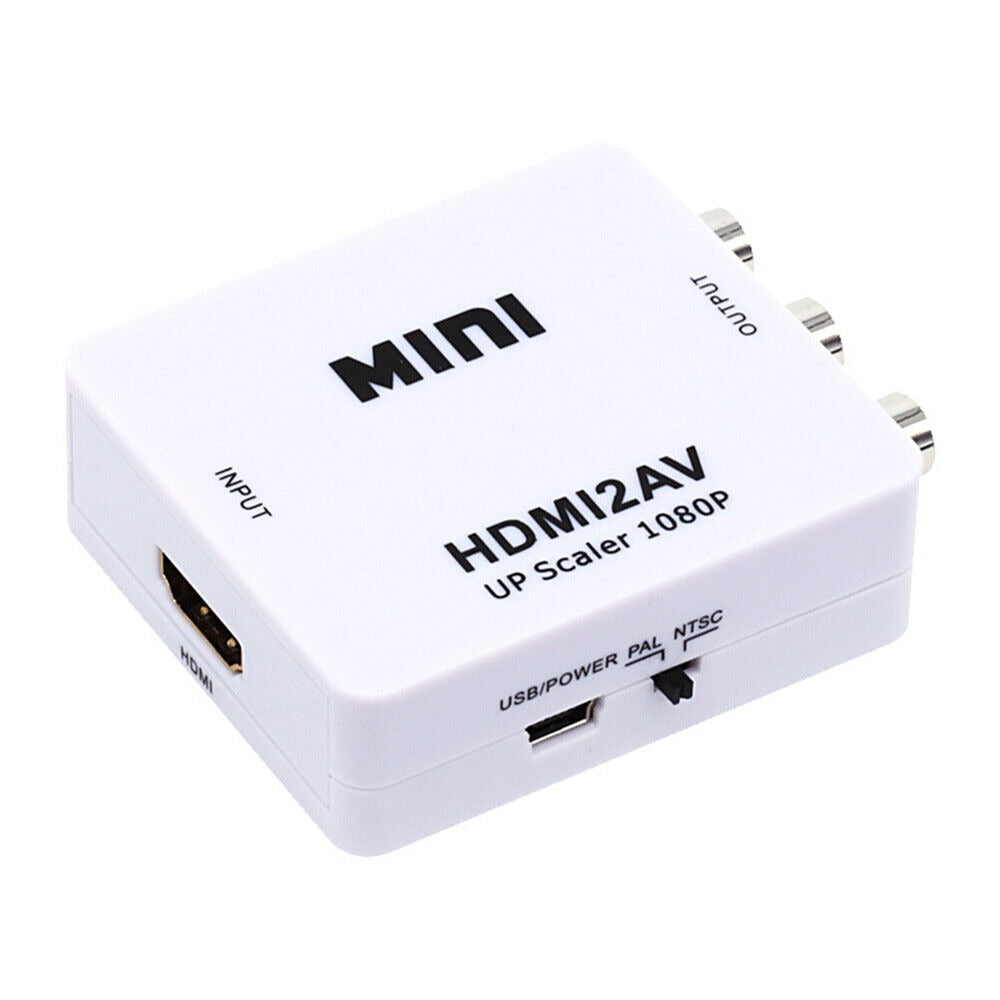

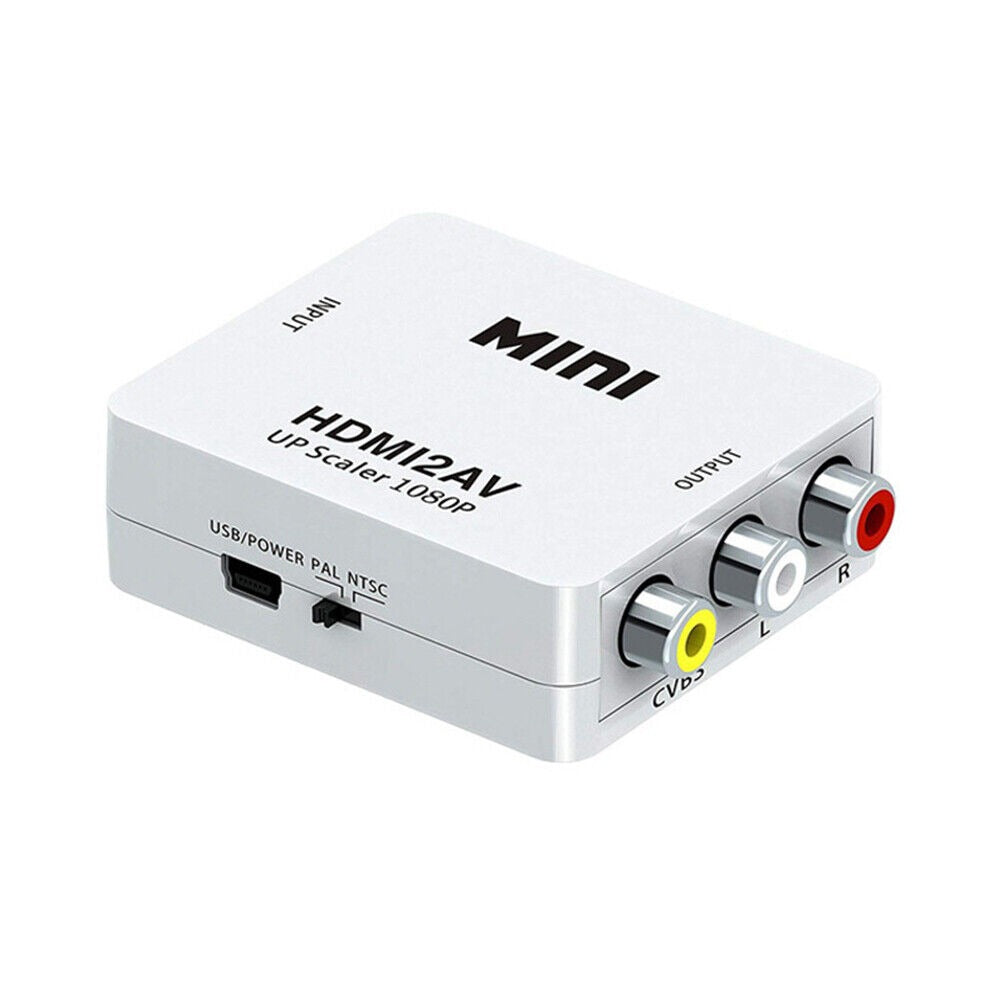

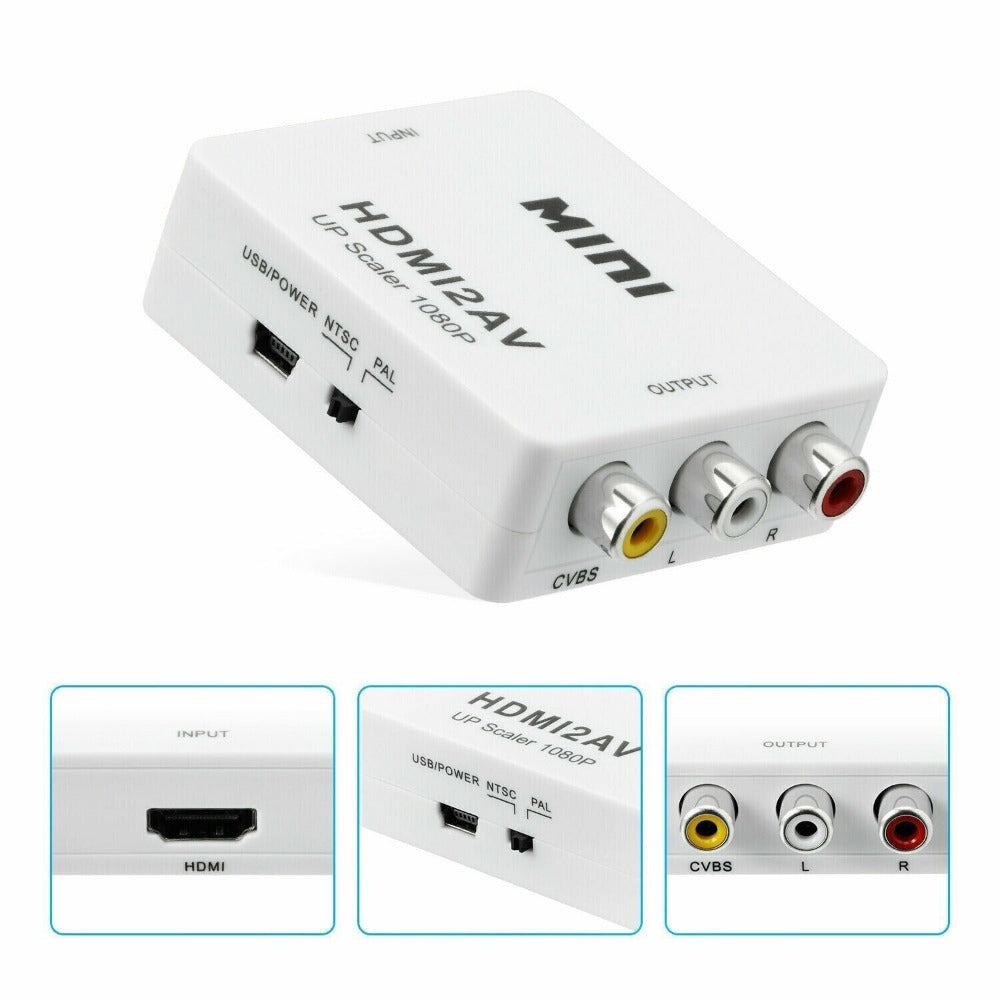

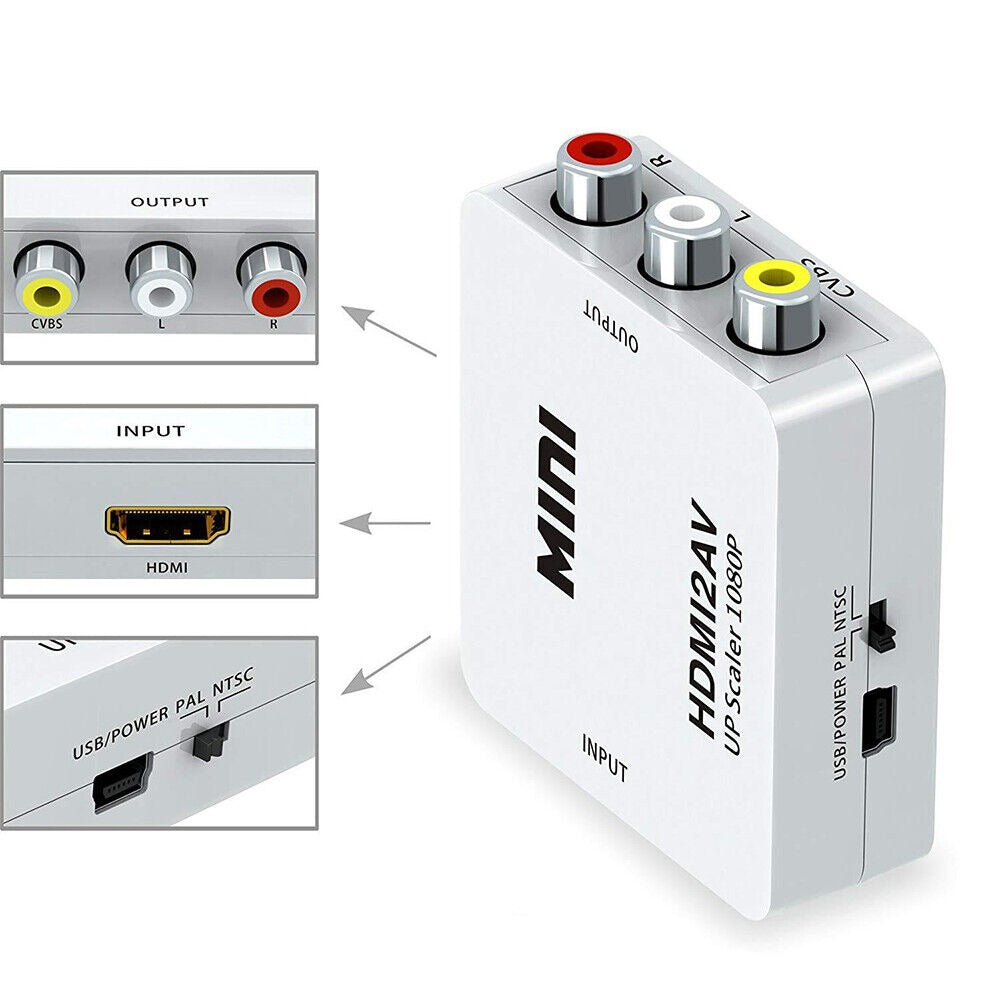

Please check the panel drawings below and become familiar with the signal input(s), output(s)and power requirements.
